COUGAR

FORZA 85

Premium single Tower Air Cooler

As a single tower air cooler for mid/high-level CPU, Forza 85 with its uniquely designed front cover, paired with COUGAR MHP120 high performance fan, provides users an optimum balance between ultra-silent operation and extremely cooling. Forza 85 is absolutely built for most performance users. (minor overclock setting capable)

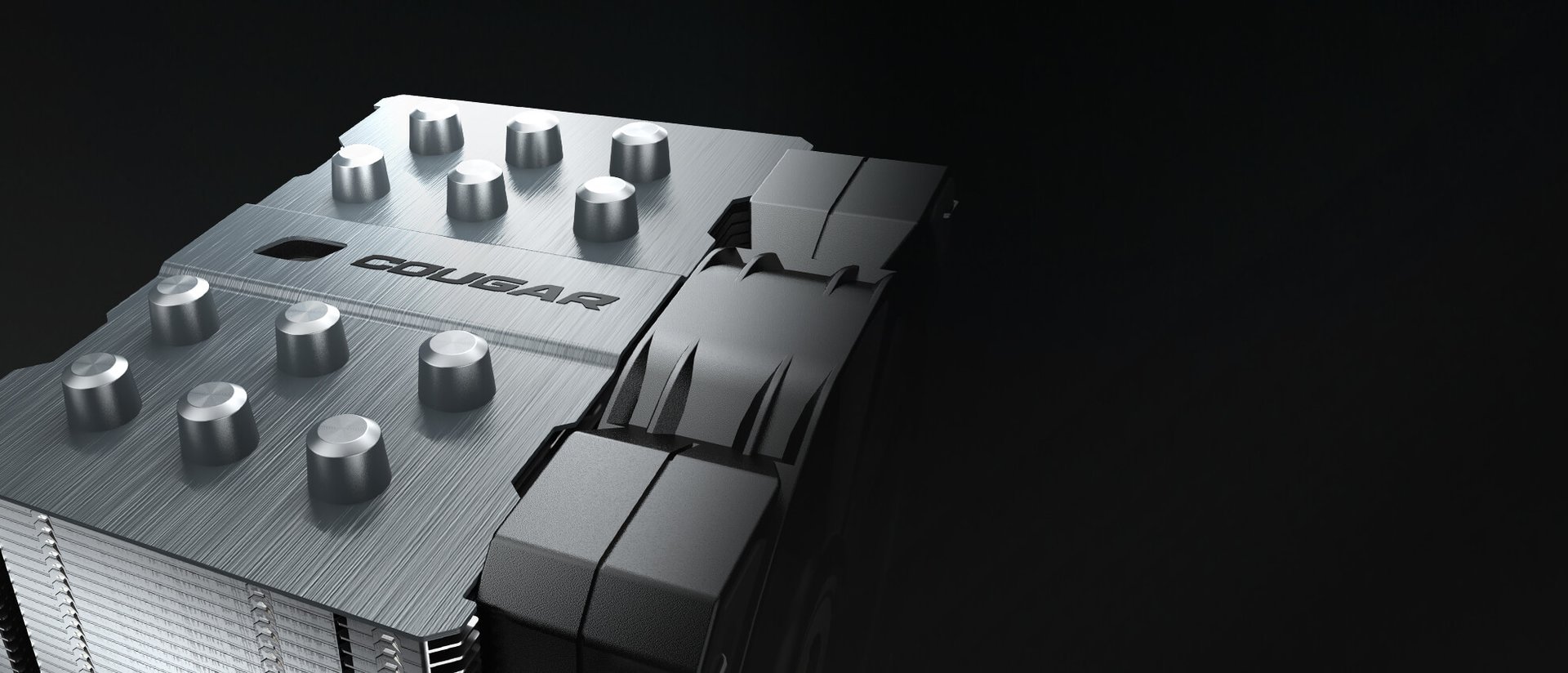

Elegant Pipe Caps Decoration

Forza 85 air cooler is designed with an elegant cap décor. Not only does it increase the esthetic of whole cooling tower, but it also prevents oxidation at the heat pipe from contacting with the air. Through the cap design, Forza 85 delivers both appearance and performance, truly amazing!

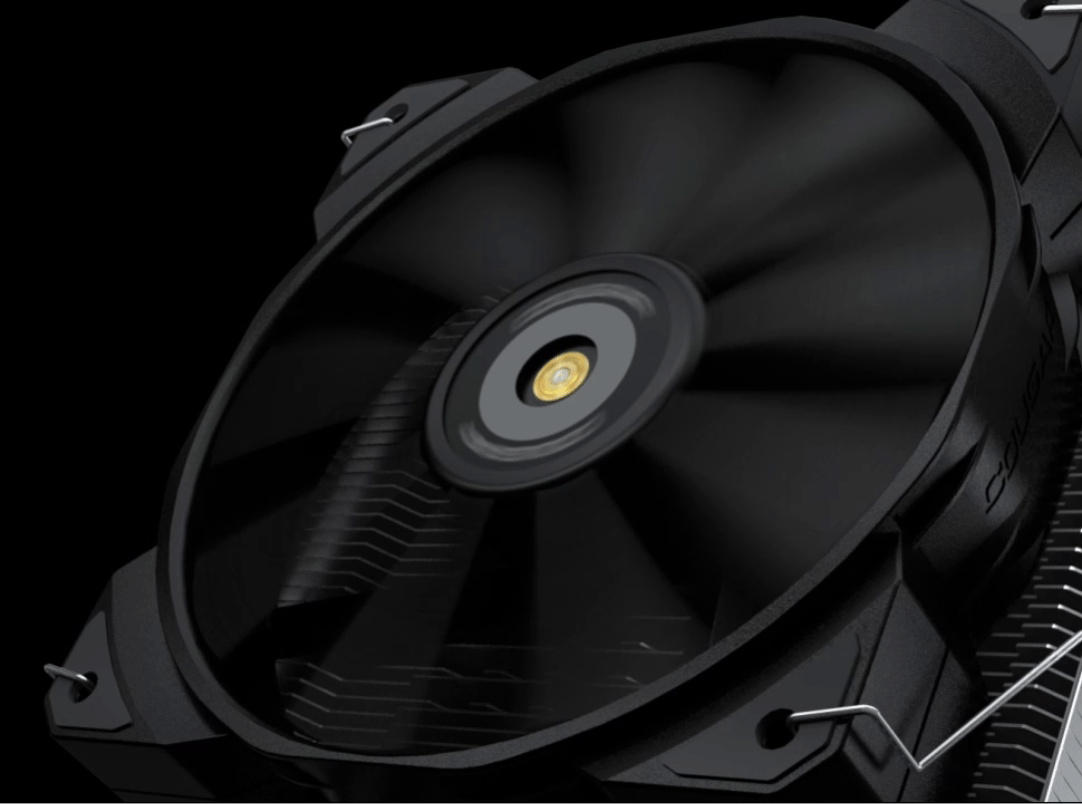

Extremely Hyper Fan

With 2000 RPM(max)

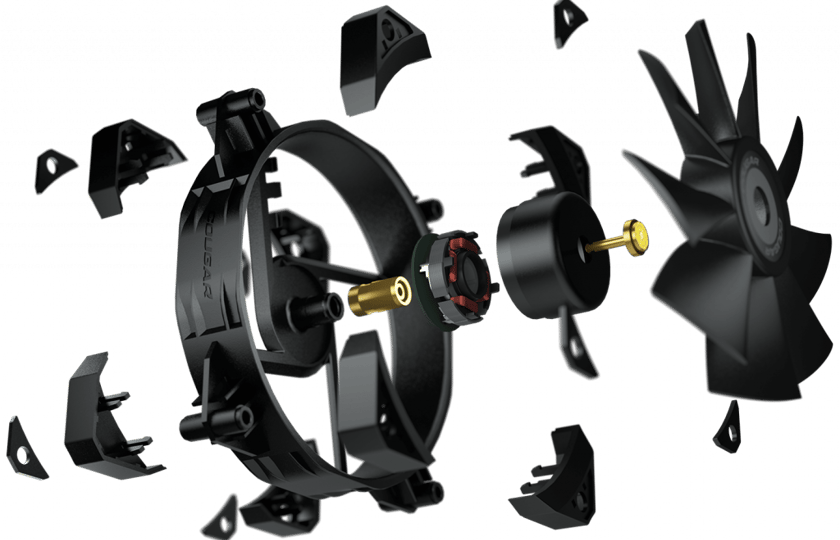

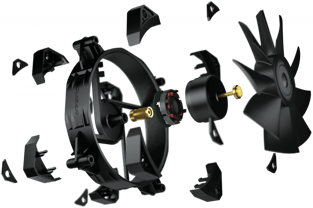

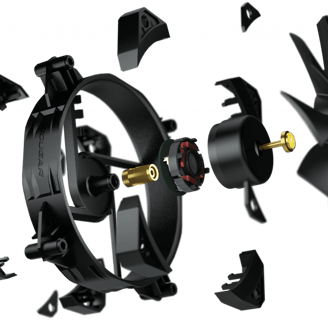

Forza 85 is equipped with a COUGAR MHP 120 high performance fan. With the durable metallic-reinforced motor hub & metal bearing shell design, as well as fan speed capable of reaching up to 2000 rpm, COUGAR MHP 120 provides high airflow & high static pressure to achieve an optimum balance between ultra-silent operation and extremely cooling. Making it the perfect partner with the Forza 85 that delivers outstanding performance.

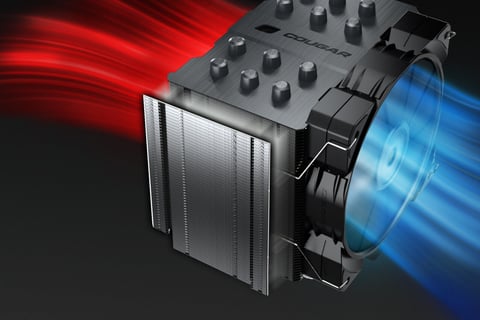

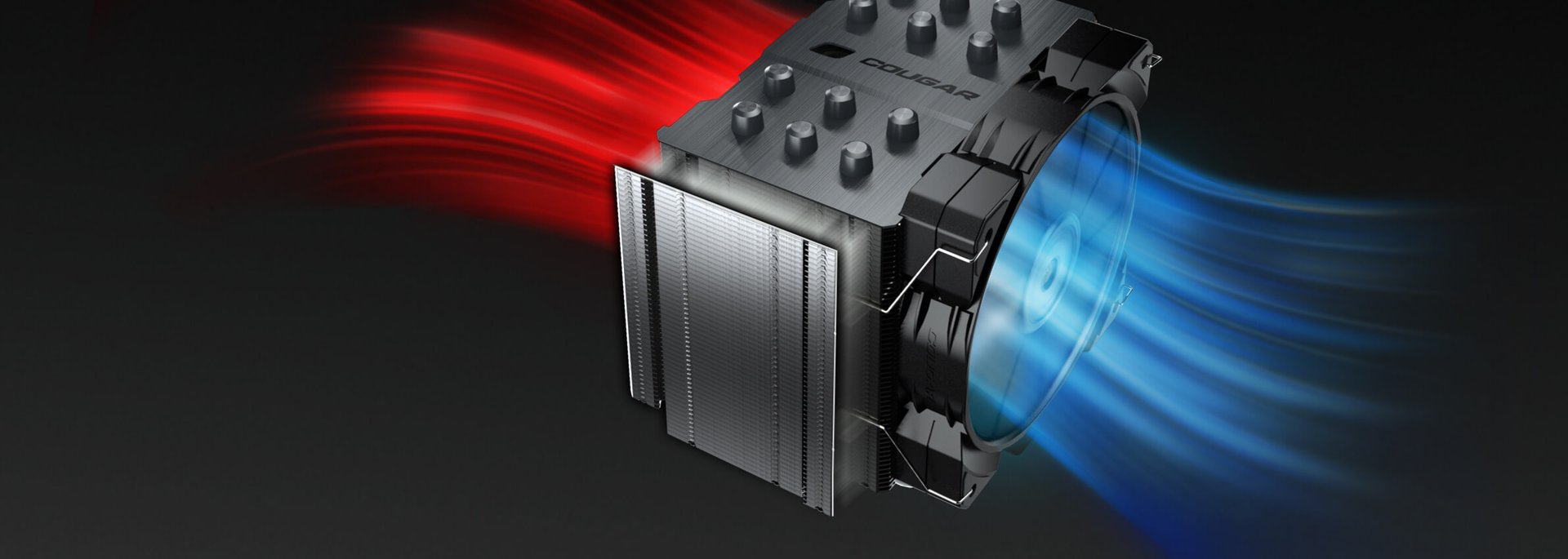

Vacuum Tunnel Design

To further enhance the efficiency of heat dissipation, Forza 85 was designed with a 90-degree flip shape on both ends of the fins on heatsink. This closed space design creates an air tunnel that shuts off air flow from sides of the radiator, and in turn, causing different air pressure on both sides of Forza 85. This air pressure difference boosts the air flow through the fins for a maximized cooling efficiency.

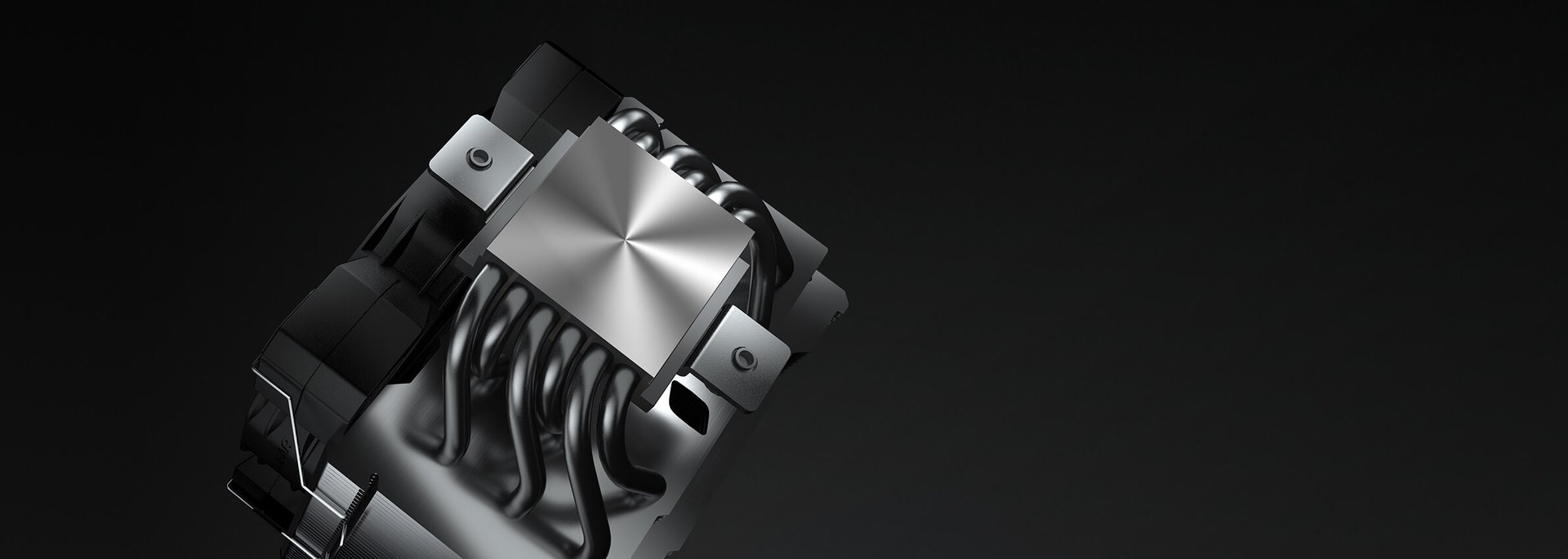

Nickel Clad Copper Base

With 6 Heat Pipes

With highly polished copper surface, reflow soldering craftmanship and six heat pipes with 6mm diameter, Forza 85 provides excellent heat dissipating capacity, enough for most users.

Excellent Compatibility

Through design verifications and installation tests, Forza 85 has superior component compatibility on RAM/GPU (including LGA1700/LGA2011/2066 sockets) of most brands with ease. Users can choose the components of choice without any concern.

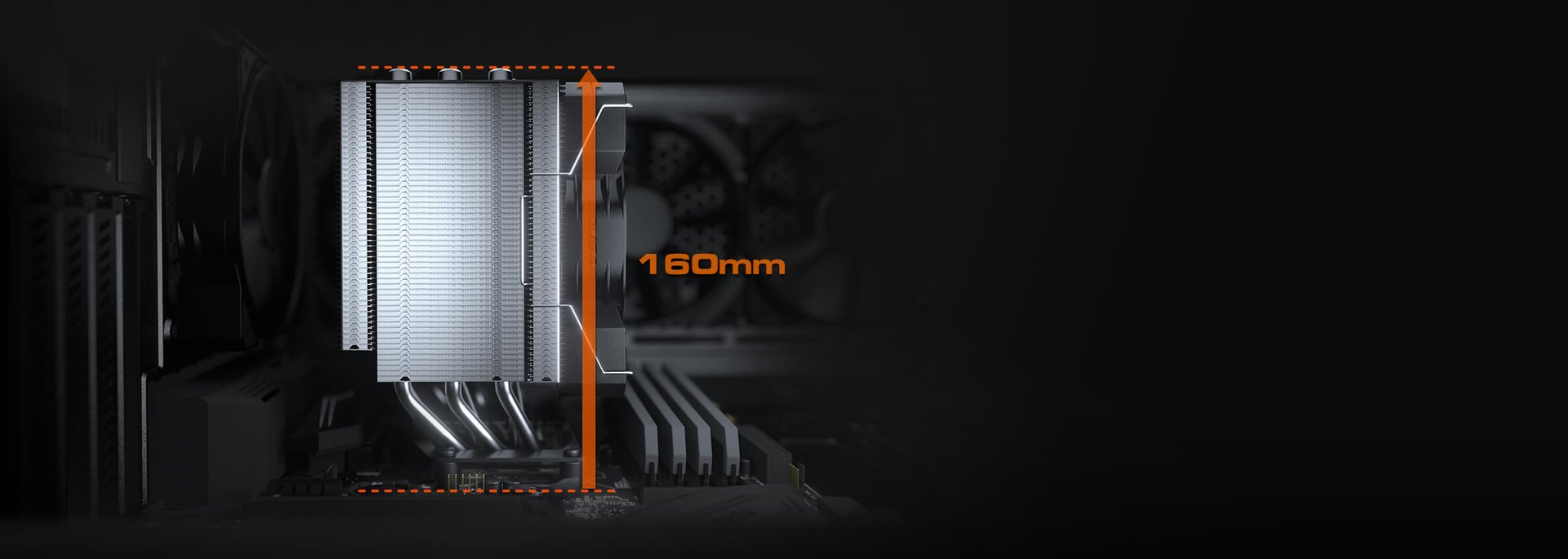

Under 160mm Height

Forza 85 can be installed in most multi-functional mid tower chassis that support ATX / E-ATX motherboards with a height restriction up to 160mm, making Forza 85 an excellent choice for those who loves PC DIY.

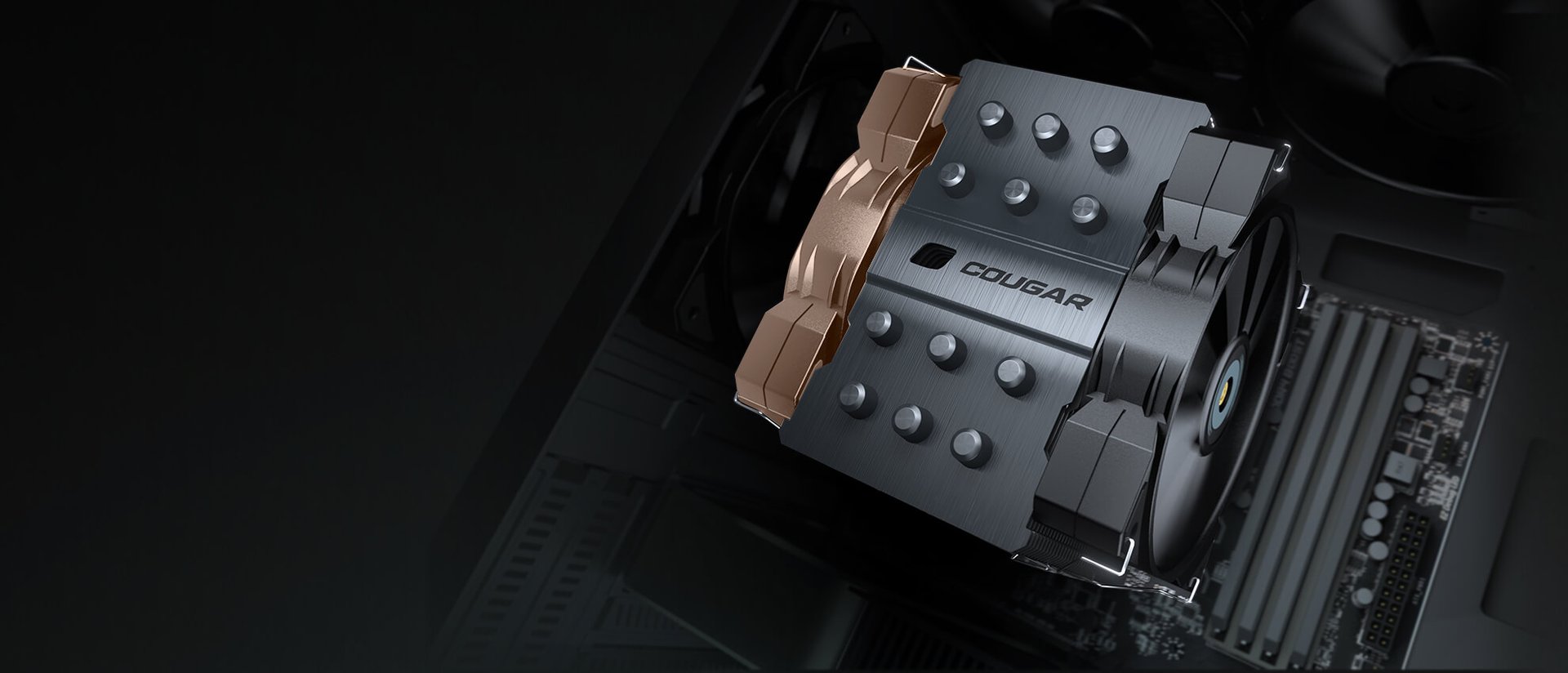

Dual Fan Acceptable

Forza 85 comes with an additional set of fan clips that allows for a second 120 mm fan of any brand to increase the heat dissipation efficiency of the Forza 85.

* To maximize the performance, we recommend a second COUGAR MHP 120 fan (sold separately

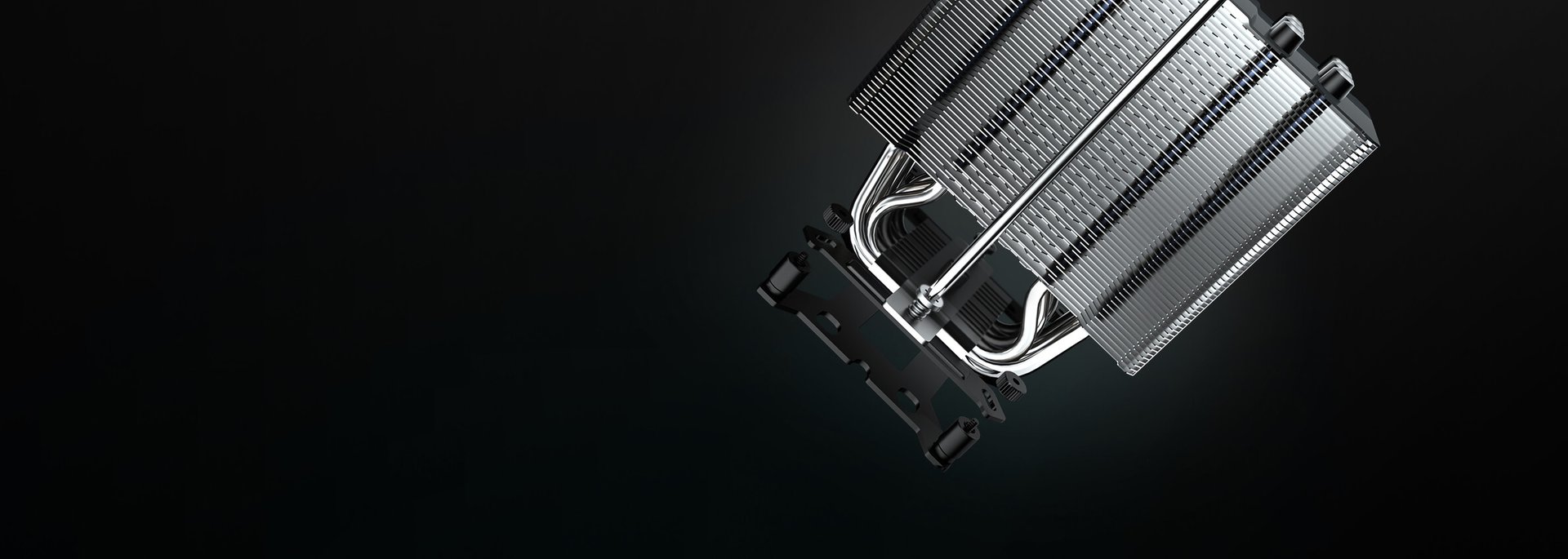

User-friendly Installation

To improve the overall installation experience, Forza 85 comes with an INTEL/AMD bracket set, that can be easily installed in only a few simple steps. A screwdriver is also included in the package for users to use directly without any prerequisite.

As a single tower air cooler for mid/high-level CPU, Forza 85 with its uniquely designed front cover, paired with COUGAR MHP120 high performance fan, provides users an optimum balance between ultra-silent operation and extremely cooling. Forza 85 is absolutely built for most performance users. (minor overclock setting capable)

COUGAR

FORZA 85

Premium single Tower
Air Cooler
Elegant Pipe
Caps Decoration

Forza 85 air cooler is designed with an elegant cap décor. Not only does it increase the esthetic of whole cooling tower, but it also prevents oxidation at the heat pipe from contacting with the air. Through the cap design, Forza 85 delivers both appearance and performance, truly amazing!

Extremely Hyper Fan

With 2000 RPM(max)

Forza 85 is equipped with a COUGAR MHP 120 high performance fan. With the durable metallic-reinforced motor hub & metal bearing shell design, as well as fan speed capable of reaching up to 2000 rpm, COUGAR MHP 120 provides high airflow & high static pressure to achieve an optimum balance between ultra-silent operation and extremely cooling. Making it the perfect partner with the Forza 85 that delivers outstanding performance.

Vacuum Tunnel Design

To further enhance the efficiency of heat dissipation, Forza 85 was designed with a 90-degree flip shape on both ends of the fins on heatsink. This closed space design creates an air tunnel that shuts off air flow from sides of the radiator, and in turn, causing different air pressure on both sides of Forza 85. This air pressure difference boosts the air flow through the fins for a maximized cooling efficiency.

Nickel Clad Copper Base

With 6 Heat Pipes

With highly polished copper surface, reflow soldering craftmanship and six heat pipes with 6mm diameter, Forza 85 provides excellent heat dissipating capacity, enough for most users.

Excellent Compatibility

Through design verifications and installation tests, Forza 85 has superior component compatibility on RAM/GPU (including LGA1700/LGA2011/2066 sockets) of most brands with ease. Users can choose the components of choice without any concern.

Under 160mm Height

Forza 85 can be installed in most multi-functional mid tower chassis that support ATX / E-ATX motherboards with a height restriction up to 160mm, making Forza 85 an excellent choice for those who loves PC DIY.

Dual Fan Acceptable

Forza 85 comes with an additional set of fan clips that allows for a second 120 mm fan of any brand to increase the heat dissipation efficiency of the Forza 85.

* To maximize the performance, we recommend a second COUGAR MHP 120 fan (sold separately

User-friendly Installation

To improve the overall installation experience, Forza 85 comes with an INTEL/AMD bracket set, that can be easily installed in only a few simple steps. A screwdriver is also included in the package for users to use directly without any prerequisite.

SPECIFICATIONS

CPU touched base

Heat pipe diameter

Heat pipe number

Heat pipe finish

Craftsmanship

Dimension (WxDxH)

Weight

Weight Incl. Fan

HEATSINK

Copper base with nickel plated

6 mm

6 units

Copper with nickel plated

Reflow

85 x 135 x 160mm

958 g

1160 g

FANS

Fan Model

Dimensions (WxDxH)

Fan Speed

Air Flow

Air Pressure

Acoustic Noise

Rated Voltage

Rated Current

Power Consumption

Bearing Type

Cable Length

Connector & Control

MHP120

120 x 120 x 25 mm

600-2000 RPM±200RPM

82.48 CFM / 143.53 m3/h (± 10%)

4.24 mm H2O±10%

34.5 dB(A) (Max.)

12 VDC

0.23 A

2.76 W ± 10%

HDB Hydro Dynamic Bearing

200 mm

4 Pin PWM

CPU Socket

Intel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2066 (Core i3 / i5 / i7 / i9 CPU)

AMD AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU
