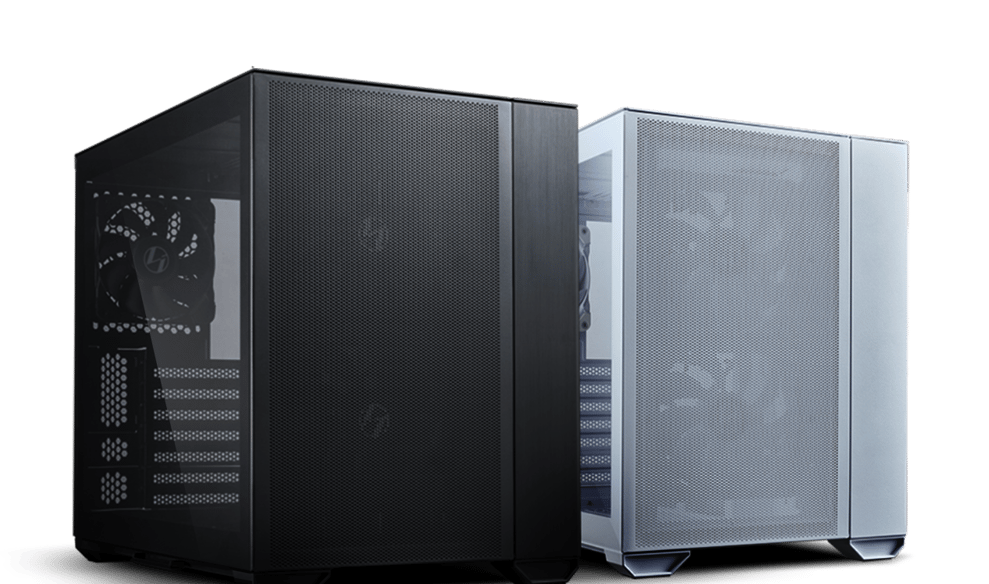

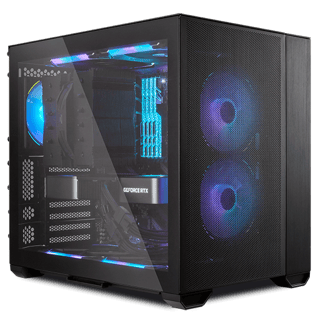

o11 AIR MINI

MODULAR DESIGN EXTREME AIRFLOW

EXTREME AIRFLOW

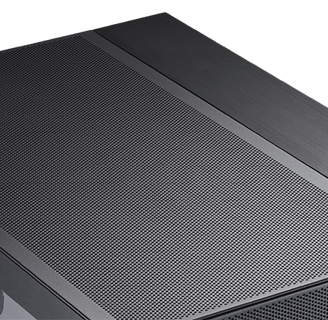

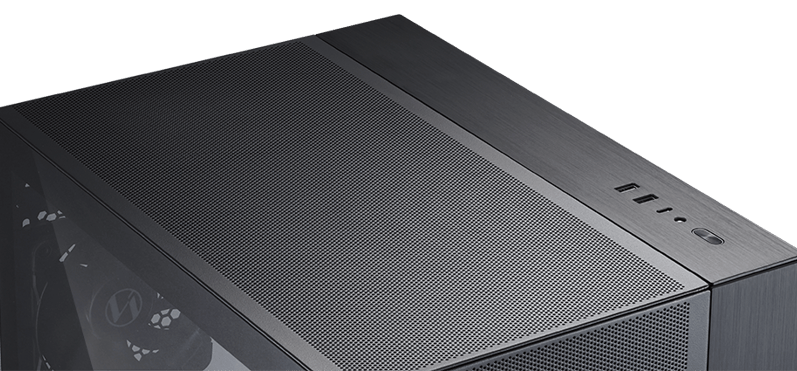

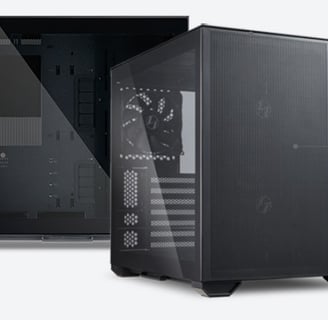

SUPER FINE MESH FRONT, TOP AND SIDE PANELS

The mesh design on the front, top and side panels of the O11 AIR MINI have been optimized to allow maximum airflow from different sides of the case to the temperatures stable and low. The super fine mesh also acts as dust filter to avoid dust buildup inside the case.

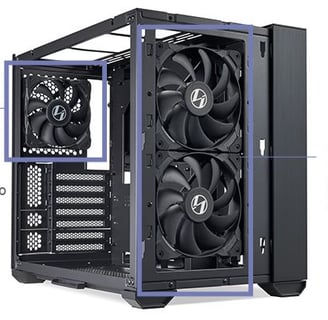

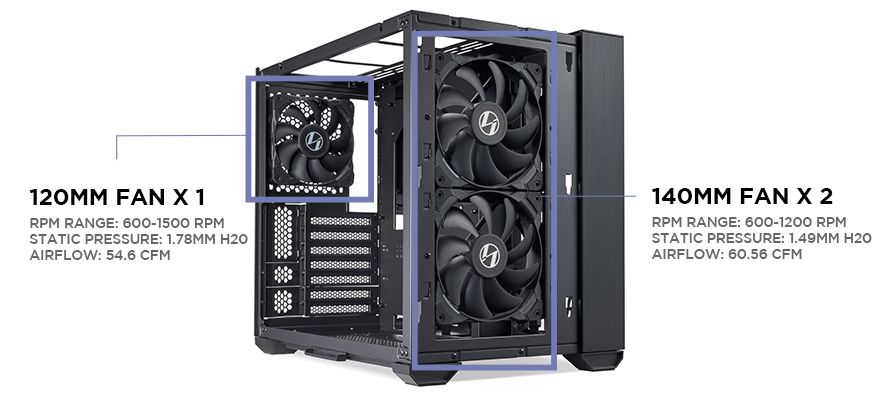

2 x 140MM FRONT FANS AND 1 X 120MM REAR FAN INCLUDED

The O11 AIR MINI comes with 2 x 140mm PWM front fans and 1 x 120mm PWM rear fan pre-installed straight out of the box.

Get your system up and running faster with ease.

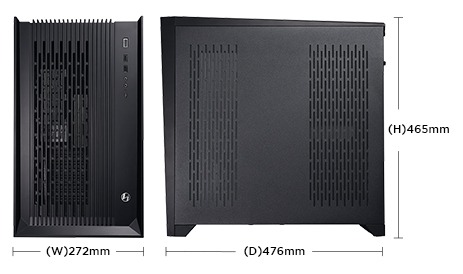

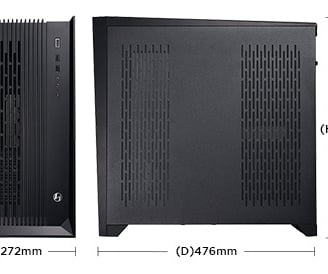

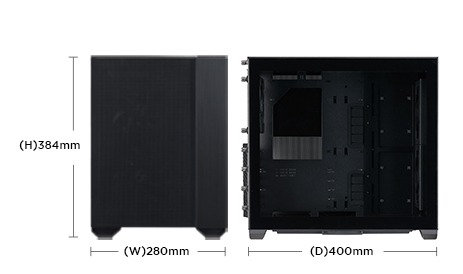

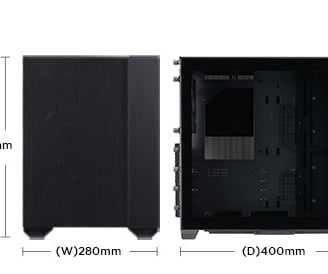

SIZE COMPARISION O11 AIR MINI vs. O11 AIR

The AIR MINI is more compact in size than the original O11 AIR, but interior space is just as accommodating and improves on cooling performance.

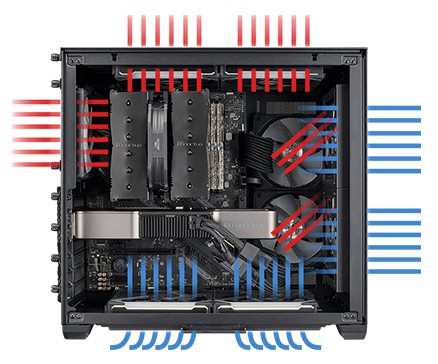

AIR COOLING OR…

The O11 AIR MINI is ideal for air cooling builds, as it has enough clearance for up to 170mm for larger tower coolers.

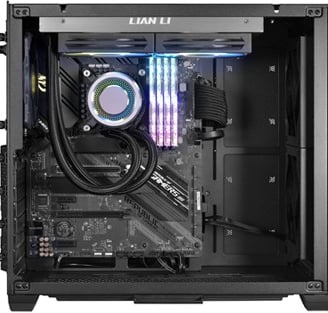

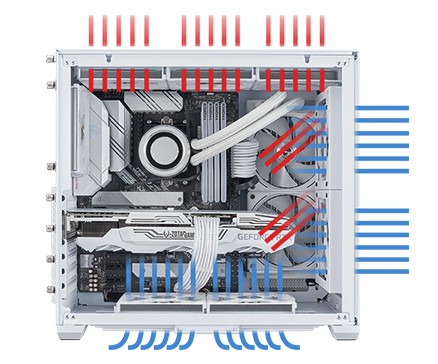

AIO WATERCOOLING

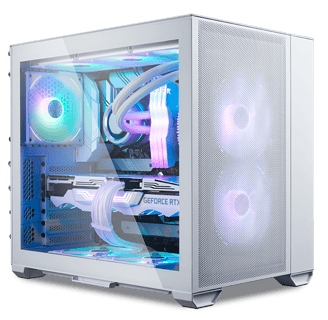

The O11 AIR MINI also accommodates AIO watercooling with enough installation space for 240mm or 280mm radiators on the top, side and bottom.

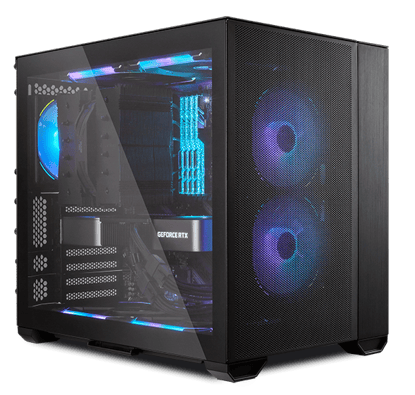

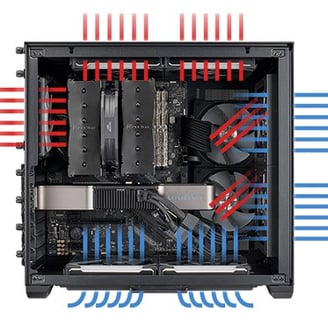

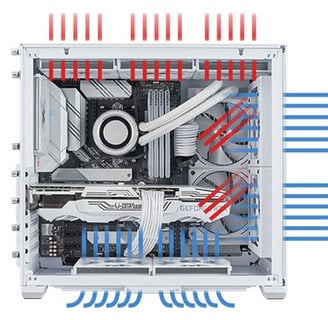

UNOBSTRUCTIVE AIRFLOW FOR AIR OR AIO COOLING SETUPS

Designed with optimized mesh pattern on the front, top and side panels, the O11 AIR MINI provides exceptional focused airflow and overall system airflow for both air cooling setups and AIO setups. The spacious interior allows for different fan or radiator configurations to maximize the cooling temperature.

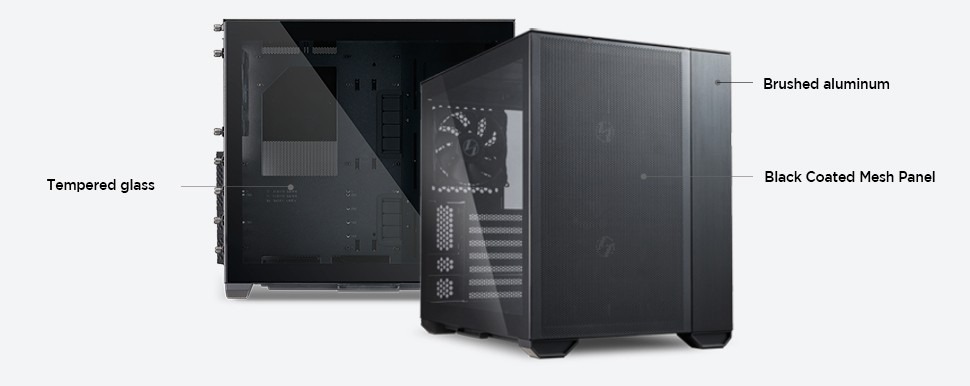

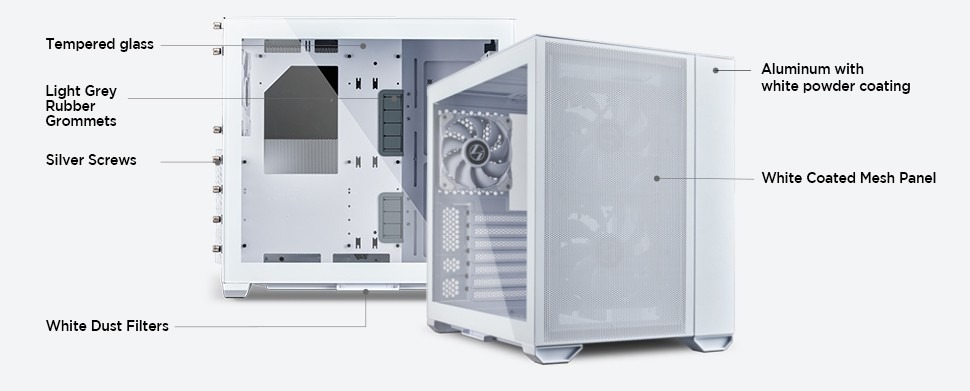

BUILT WITH THE FINEST MATERIALS

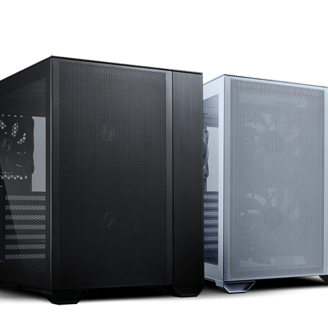

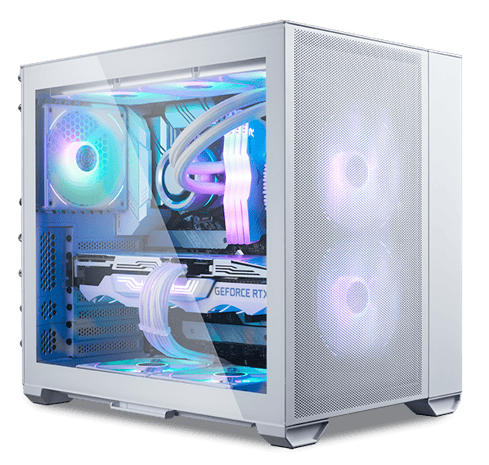

The O11 AIR MINI black has a premium hairline brushed aluminum that looks as good as it feels. The O11 AIR MINI white has a minimalist white powder coating. The durable tempered glass allows for easy and carefree maintenance and for showing off the internal components.

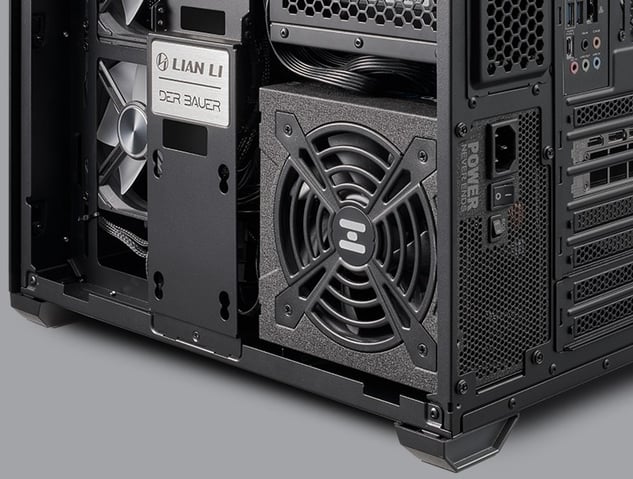

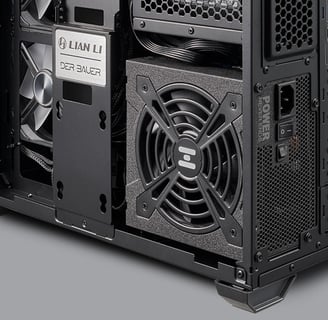

SUPPORTS REGULAR SIZED ATX POWER SUPPLY

O11 AIR MINI supports up to 200mm long full ATX PSUs to easily swap the power from another system and run the most power hungry systems.

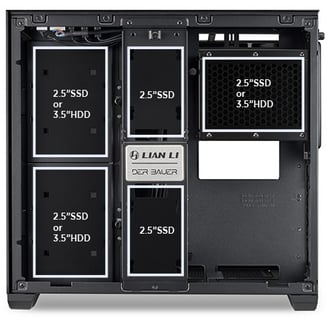

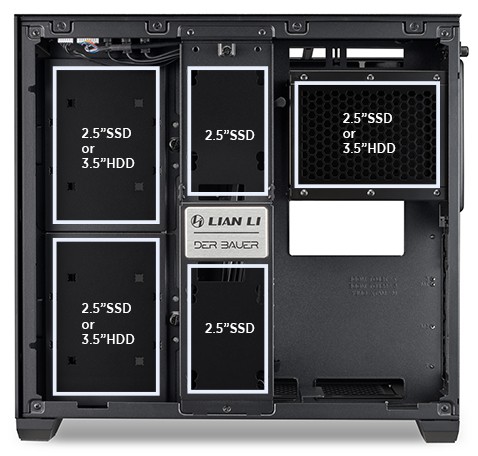

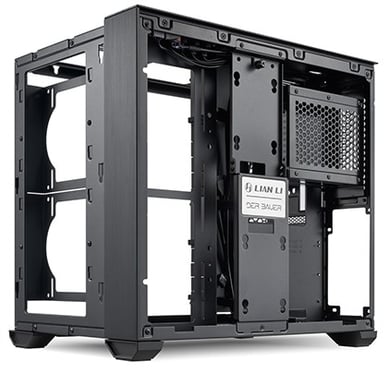

UP TO 6 x SSD OR 4 X HDD + 2 X SSD STORAGE

All storage is tucked away behind the motherboard tray.

A total of 6 x 2.5” drives or 4 x 3.5” + 2 x 2.5” drives can be installed with dedicated mounts for storage.

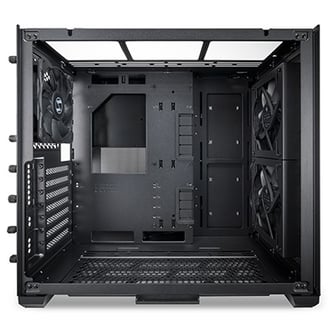

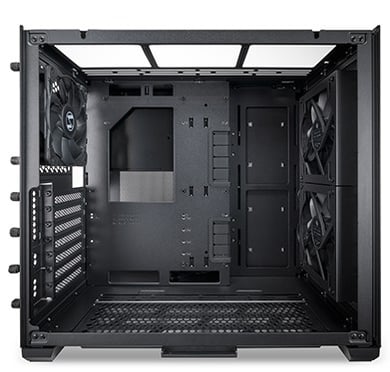

DUAL-CHAMBER CABLE MANAGEMENT

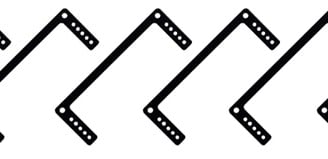

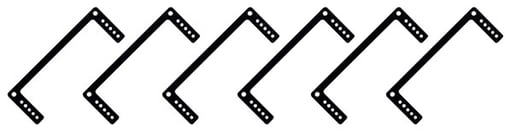

Cables can be quickly passed through rubber grommets to the second chamber. Multiple tie points and velcro strap channels are provided for tidy cables.

OPTIONAL ACCCESSORY

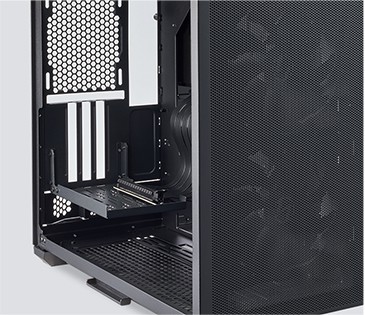

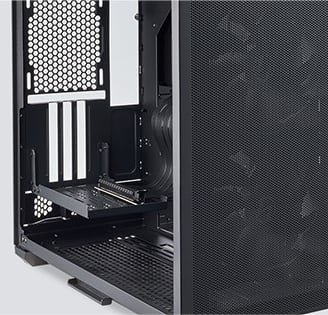

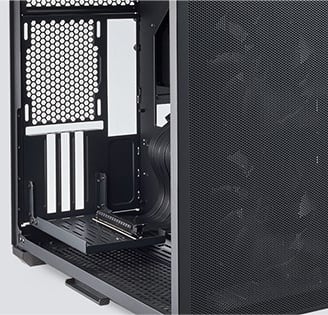

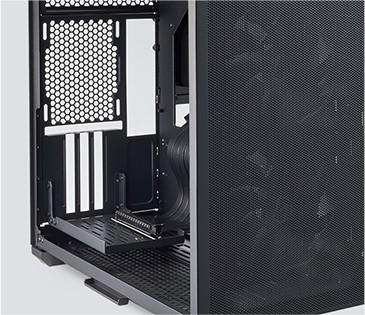

Vertical GPU – CAN BE USED IN TOP OR BOTTOM MODE.

The vertical GPU bracket can be used as top mode or bottom mode to accommodate clearance for fans and radiators.

TOP MODE

Top Mode60mm of clearance

(Can install 2 x 120mm fans under GPU)

BOTTOM MODE

20mm of clearance

(No room for mounting fans under GPU)

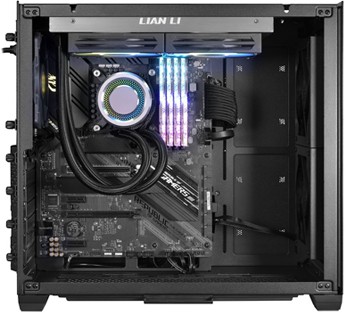

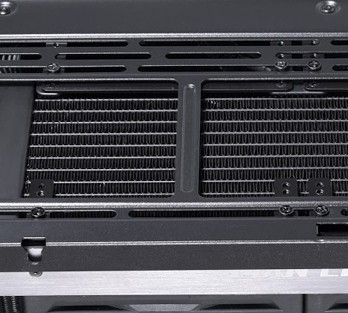

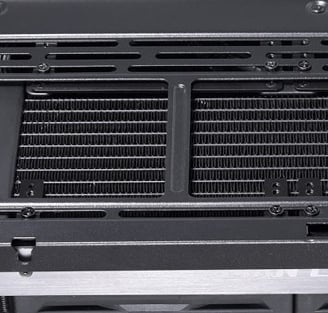

Radiator Offset Bracket – For top 240mm Radiator

The offset bracket can avoid conflict with memory module when mounting the ATX motherboard and top radiator with fans.

Allow mounting a 240mm AIO on top of O11 AIR MINI at 7 slots mode.

SPECIFICATIONS

PRODUCT NAME

MODEL

COLOR

DIMENSION

MATERIAL

MOTHERBOARD SUPPORT

PSU SUPPORT

INCLUDED FAN

FAN SUPPORT

RADIATOR SUPPORT

DRIVE SUPPORT

GPU LENGTH CLEARANCE

CPU HEIGHT CLEARANCE

EXPANSION SLOTS

I/O PORTS

DUST FILTER

O11 Air MINI

O11AMX O11AMW

Black White

(D) 400 X (W) 288 X (H) 384 mm

4mm Aluminum Panel 0.8mm Mesh Panel 4.0 mm Tempered Glass

E-ATX (Max 280 mm wide)/ ATX/ Micro-ATX/ Mini-ITX

ATX (Max. 200 mm)

(Front) 2 X 140mm PWM Fan (Rear) 1 X 120mm PWM Fan

(Top) 120mm X3 / 140mm X2 (Side) 120mm X2 (Bottom) 120mm X2/ 140mm X2 (Front) 120mm X2/ 140mm X2 (Rear)120 mm X1

(Top) 240mm or 280mm (Side) 240mm (Bottom) 240mm or 280mm (Front) 240mm or 280mm

6 X 2.5” SSD or 2 X 2.5” SSD + 4 X 3.5” HDD

362 mm

170 mm

7 or 5 (depends on the back panel)

2 X USB 3.0 1 X USB 3.1 Type-c 1 X HD Audio

1 × removable bottom dust tray
