MODULAR DESIGN FLEXIBILITY

FOR ANY CONFIGURATION

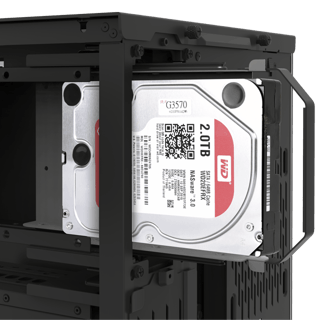

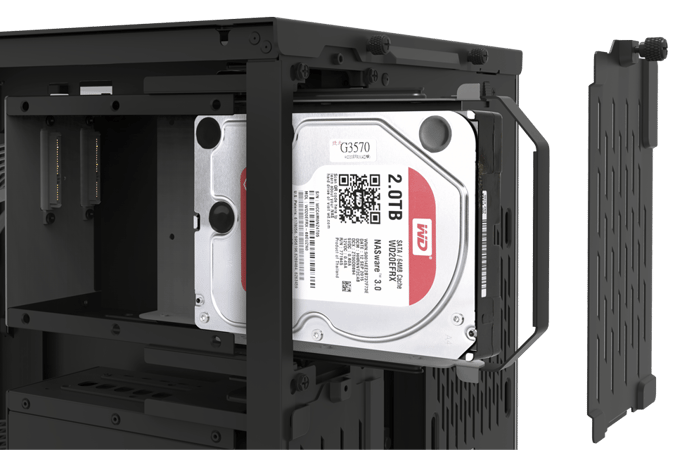

HOT SWAPPABLE DRIVES

for replacement or addition of storage without shutting down the system

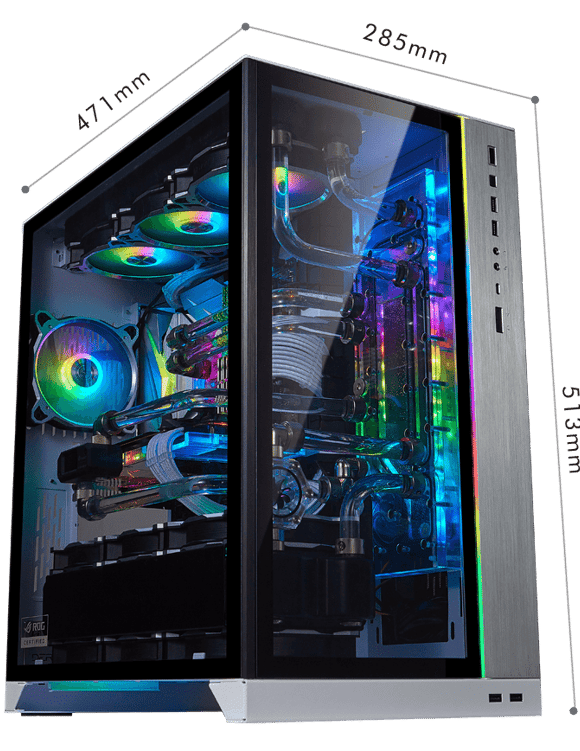

SPACIOUS FOR MULTIPLE AND BIGGER COMPONENTS

(D) 471 x (W) 285 x (H) 513mm

EASIER BUILT PROCESS EFFORTLESS CABLE MANAGEMENT

SEAMLESSLY SUPPORTING

E-ATX MOTHERBOARDS

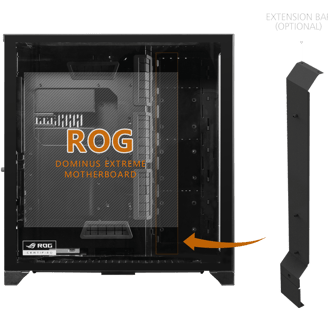

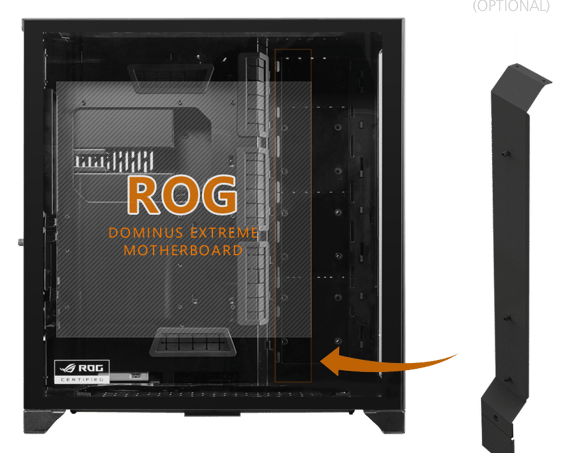

Extension bar (optional) enables support for the rog dominus extreme

RGB LIGHTING SYNCH FRONT PANEL ADDRESSABLE RGB

Built-in rgb effect controlled by the front panel m|c buttons to synch with the motherboard, switch to the 8th mode

IMPORTANT NOTE:

make sure to connect the 3-pin header of the controller to the 3-pin header on the motherboard. do not connect it to the 4-pin header or unrecoverable

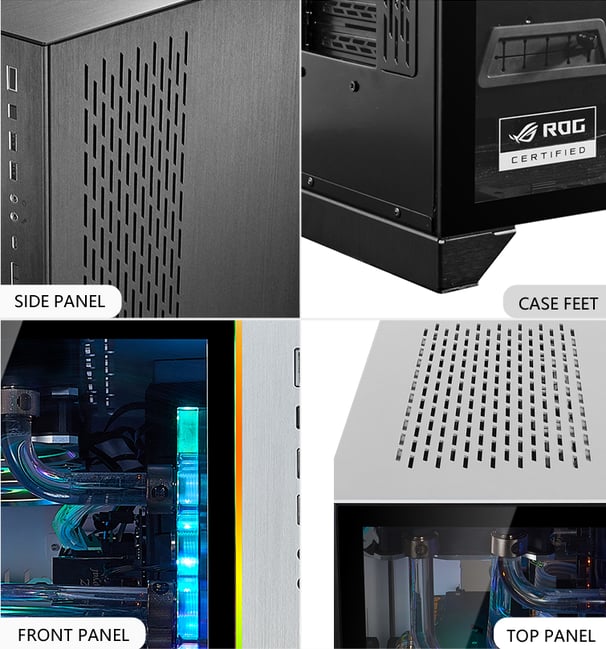

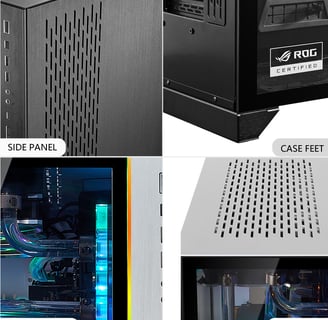

EXQUISITE ALUMINUM EXTERIOR

I/O ports panel front panel right side case feet

EFFORTLESS ASSEMBLY

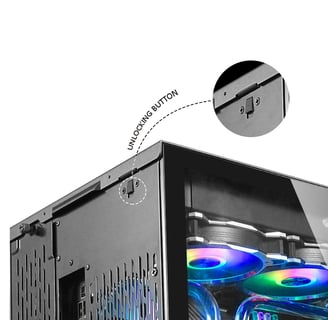

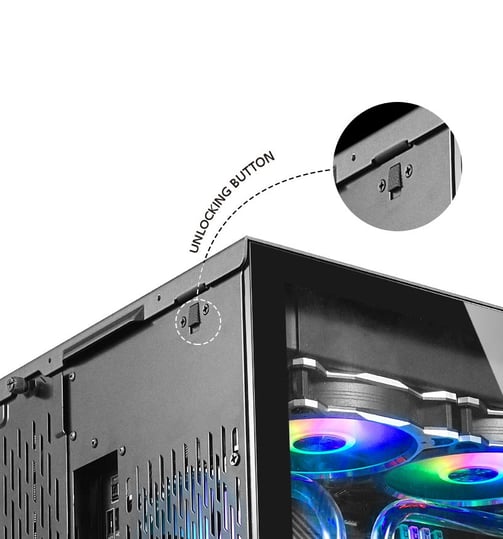

PUSH AND HOLD TO UNLOCK THE TOP PANEL

screw-free, quick and easy

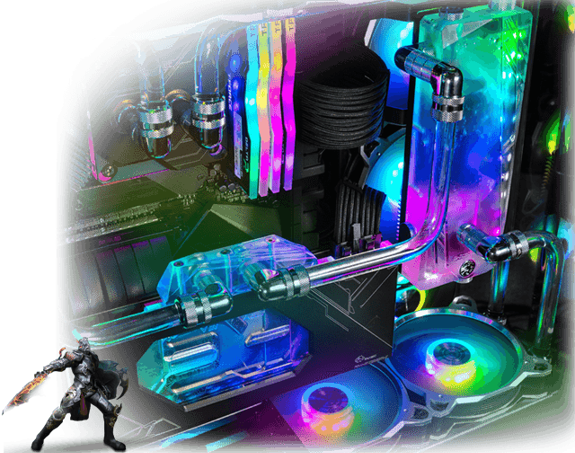

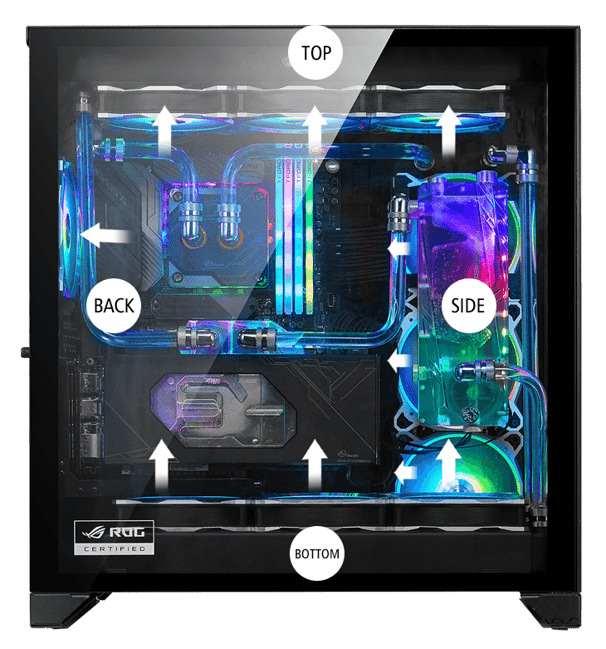

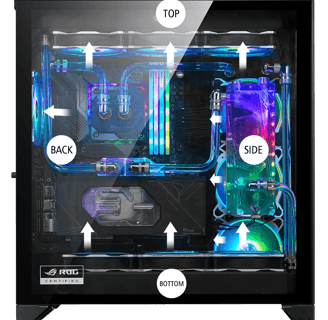

UPGRADED COOLING SUPPORT

Stronger airflow support for an additional 120mm fan at the rear

Enough room for a thick radiator at the bottom even when mounting dual gpu or vertical gpu

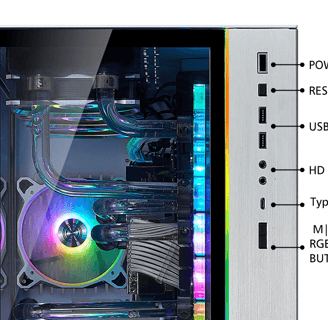

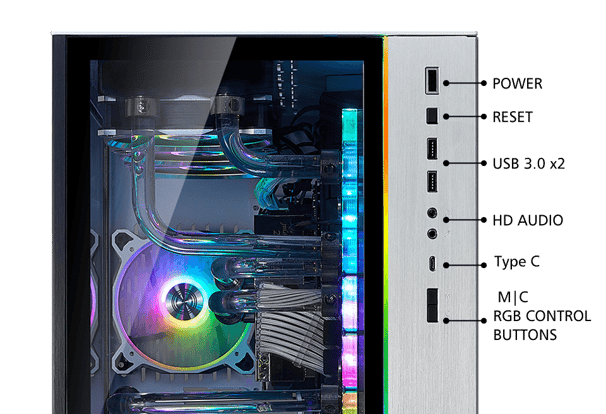

MULTIPLE TYPE OF PORTS TO SATISFY ANY NEED

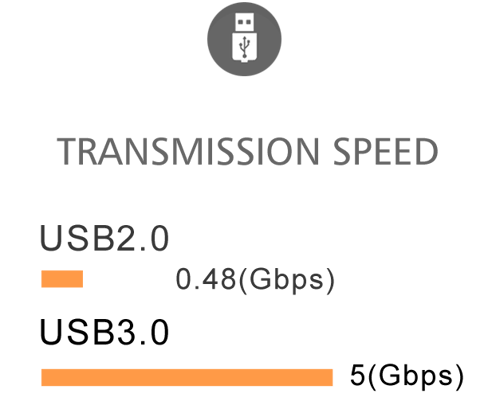

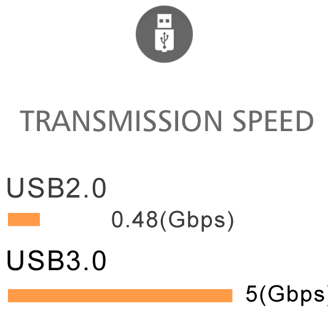

4 x usb3.0 + 1 x type c + m|c rgb control buttons

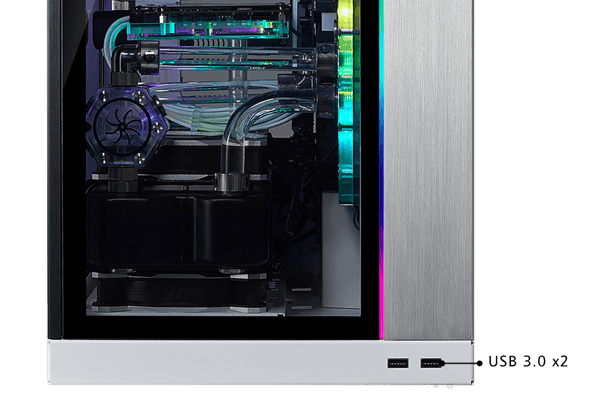

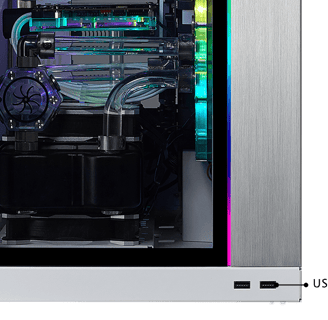

2 x usb3.0 at top and bottom to catter to different usage scenarios

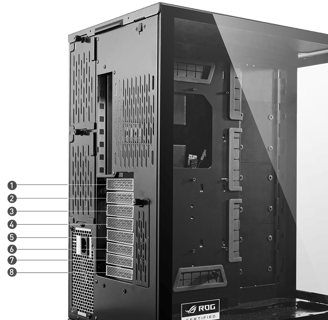

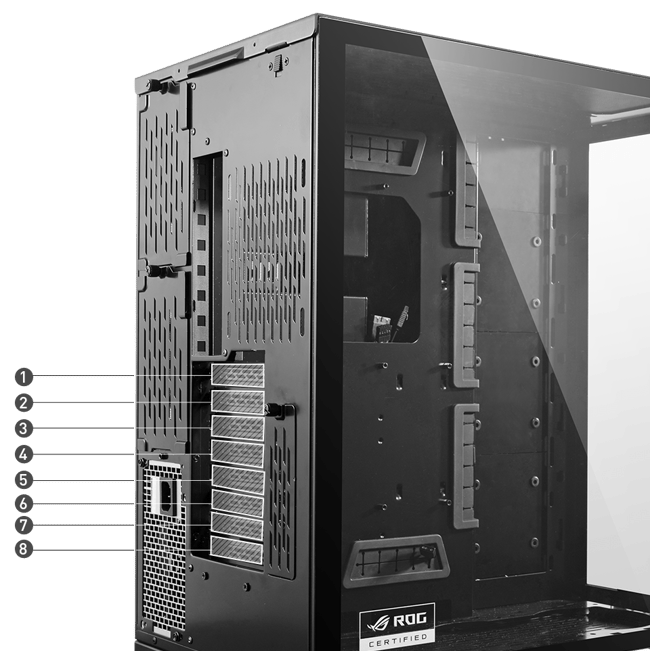

MORE FLEXIBILITY FOR GPU CONFIGURATION

8 slots to support dual gpu or vertically mount gpu

Supporting high-end gpus up to 169mm tall

VERTICAL GPU HOLDER

(SOLD SEPARATELY)

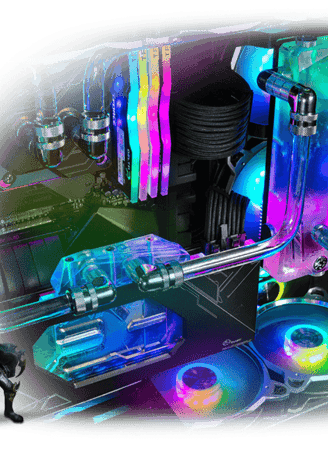

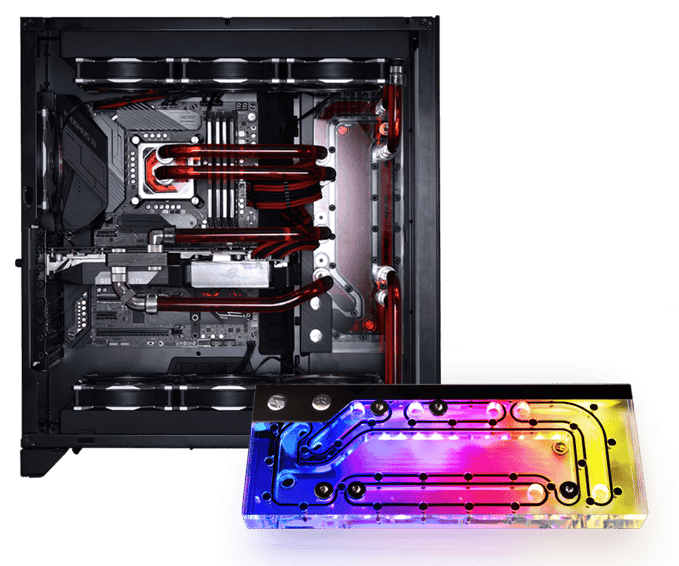

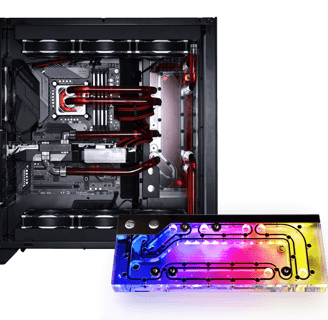

O11D DISTRO-PLATE G1 DESIGNED BY EKWB

Multiple inlet and outlet ports

simplifies the water-cooling build process

argb lighting effect

come with a powerful ddc3.1 pwm water pump

Connect2Aryans

German Engineering Approved

The O11 Dynamic series from LIAN LI is developed in collaboration with DER8AUR, a world-renowned German overclocking, water cooling, and gaming evangelist. Always looking for ways to improve computer design and performance, DER8AUER volunteered his time to review and test the design concepts of the O11D series.

Starting with the first O11 Dynamic and up until the most recent models of the O11D series, LIAN LI appreciates the input from DER8AUER which helped make the O11D series exceptional cases, especially in terms of custom water cooling compatibility, ease of build, and features offered. As a result, DER8AUER’s seal of approval is elegantly displayed beside the LIAN LI logo, standing as a statement of quality and reliability.

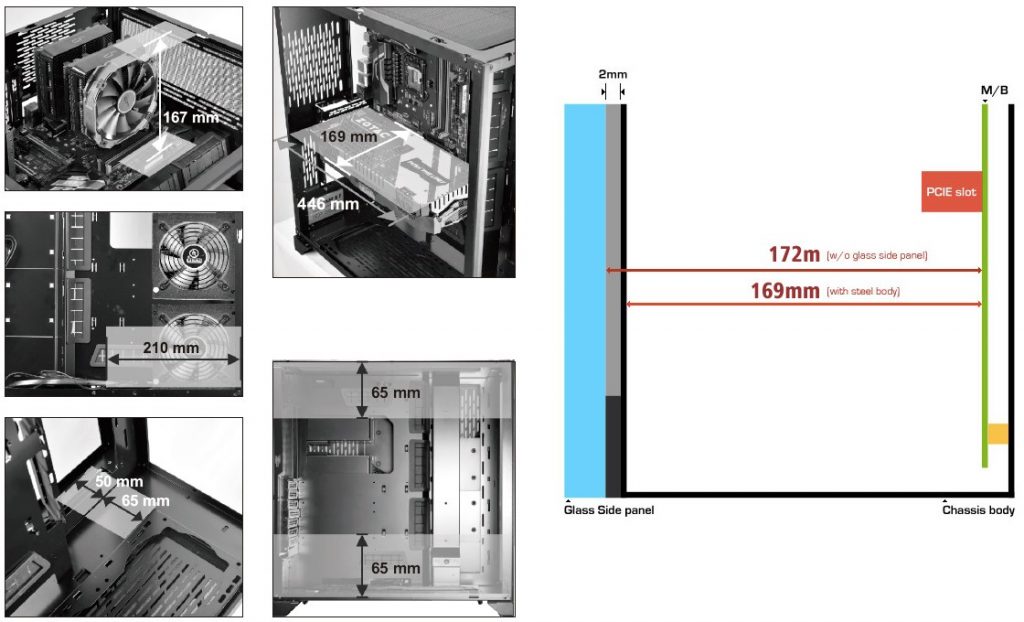

COMPATIBILITY

SPECIFICATIONS

Model

Color

Dimensions

Motherboard

PSU

Materials

Fan Support

GPU LENGTH

CPU CLEARANCE

Drive

EXPENSION SLOTS

I/O Ports

Dust Filters

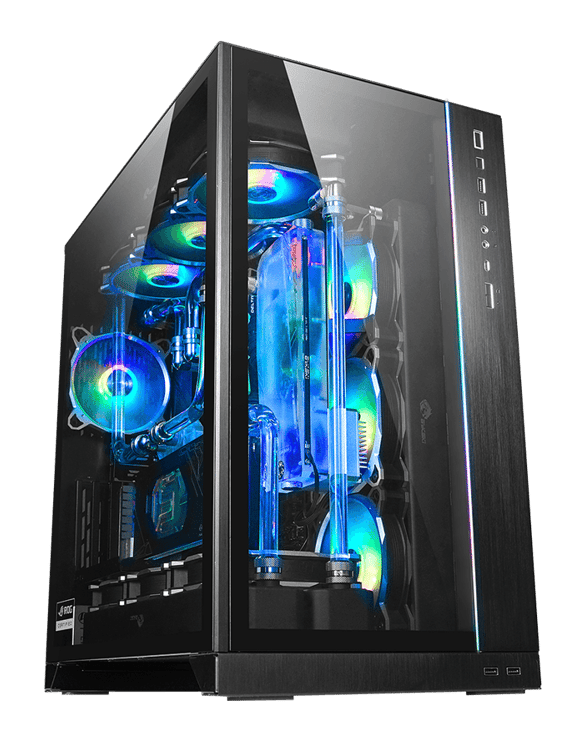

O11 Dynamic XL

O11DXL-X O11DXL-W O11DXL-A

Black White Silver

(D) 471 x (W) 285 x (H) 513 mm

E-ATX/ATX/M-ATX/ITX (need to purchase an extension panel for EEB motherboards)

220 mm (max 280mm)

1.0 mm ALUMINUM EXTERIOR
4.0 mm TEMPERED GLASS LEFT SIDE AND FRONT PANELS
1.0 mm SPCC INTERIOR

3 X 120 mm (side) + 1 X 120 mm (rear) + 3 X 120 mm/2 x 140 mm (base) + 3 X 120 mm/2 x 140 mm (top) (Optional)

446 mm

167 mm

10 X 2.5” SSD or 6 X 2.5” SSD + 4 X 3.5” HDD

8

4 X USB 3.0 (2 on the front, 2 at the front case feet), 1 X USB 3.1 TYPE-C, 1 X HD AUDIO

1 X TOP, 1 X BOTTOM, 2 X SIDE
