O11 DYNAMIC

-SPACE OPTIMIZATION CHASSIS-

The O11 DYNAMIC is the combination of modern design and art. Through years of researching,collecting feedback and redesigning; We have successfully craft the best edition of the dual chamber chassis.

Connect2Aryans

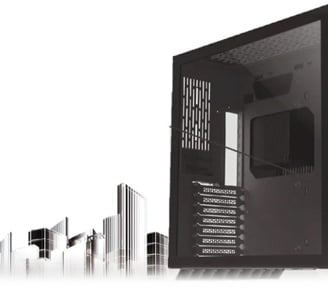

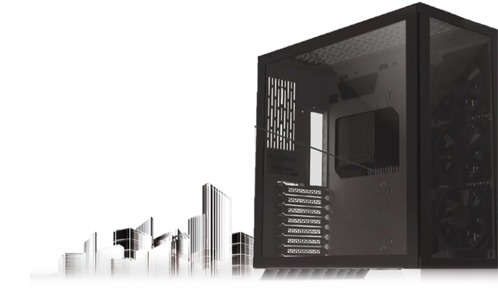

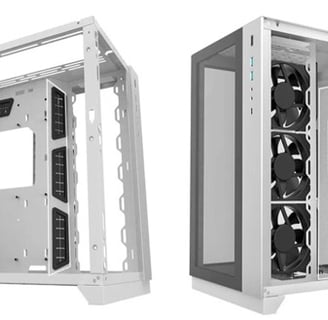

Modern Architecture

Display your hardware like

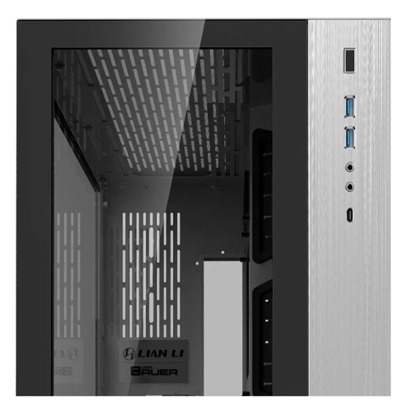

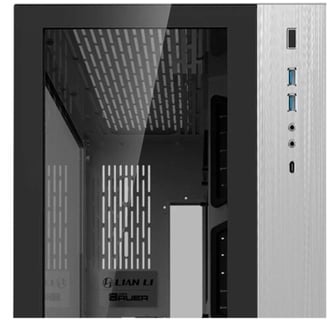

Experience the full view seamless front and side tempered glasses like a show room

Connect2Aryans

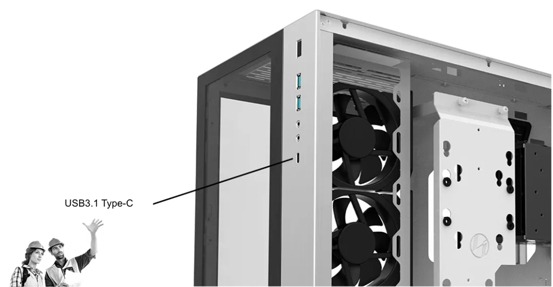

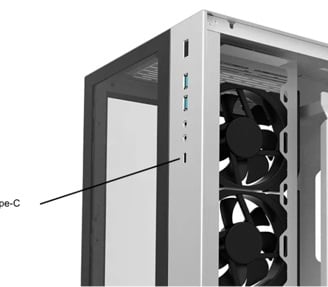

USB3.1 Type-C, Test the limit of transferring Speed

Type-C(USB 3.1) 1280MB/

Connect2Aryans

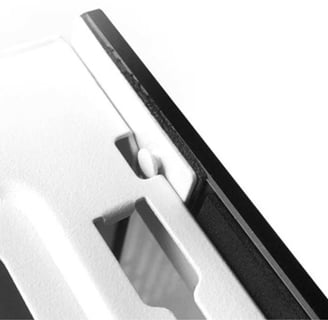

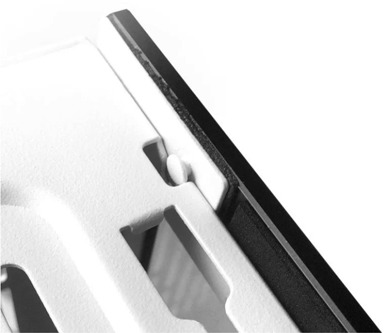

Patented Designed Glass Mounting Mechanism

The two bolt on the steel pieces adhering on the glass secure the panel with ease

Connect2Aryans

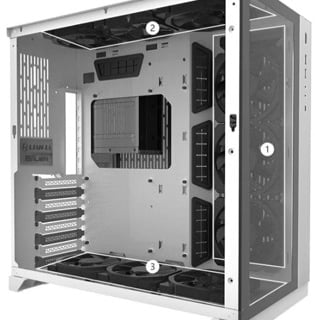

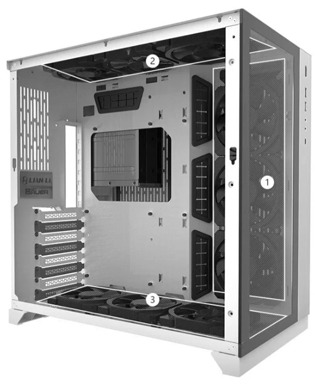

The potential of housing Multiple Radiators

Top/Bottom/Side can be mounted for up to three 360 Radiators without interference

Connect2Aryans

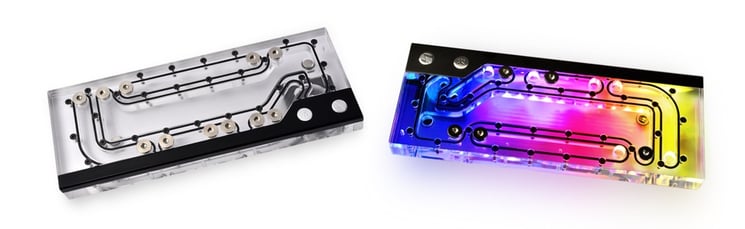

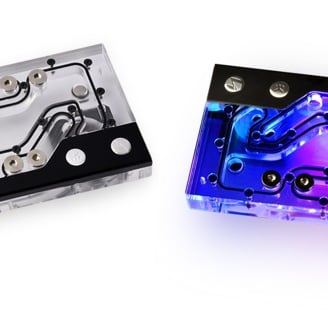

O11D DISTRO-PPLATTE G1

Designed By EKWB

Connect2Aryans

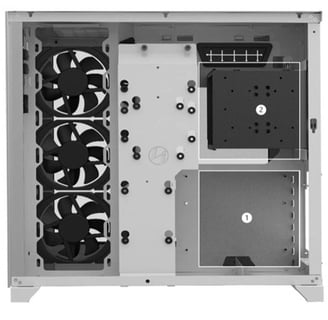

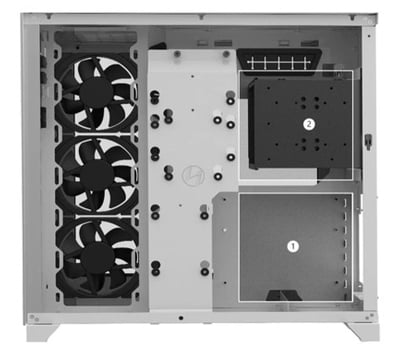

Dual PSUs Capability for efficiency

The drive caddy can be swapped for second PSUs or can be switched to the lower position.

Connect2Aryans

The Combination of the glass and aluminum,

Wide front glass combines with brush aluminum in proper proportion

Connect2Aryans

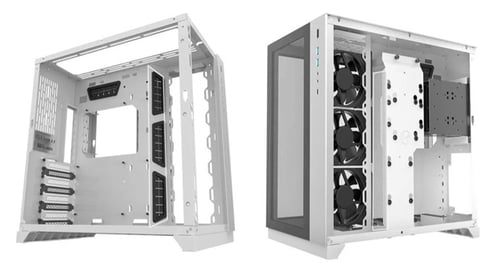

Double Layer Cable Management Design

The angled motherboard tray and the back side cable management bar seal the and exclude any cable mess

Connect2Aryans

6 Hard Drive Capability

Support up to 6 SSD, and 3 HDD

Connect2Aryans

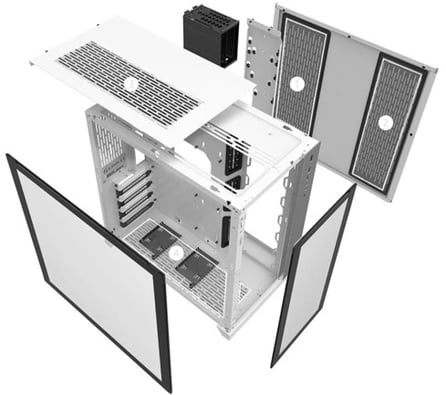

4 x Dust Filter, Complete Dust Protection

Bottom/top/ Side panels are all equipped with magnetic dust filters to prevent any dust infiltration

Connect2Aryans

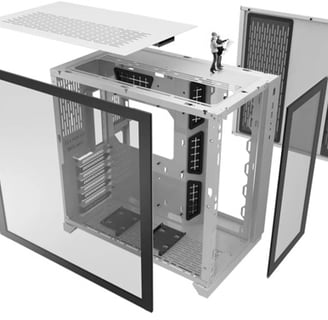

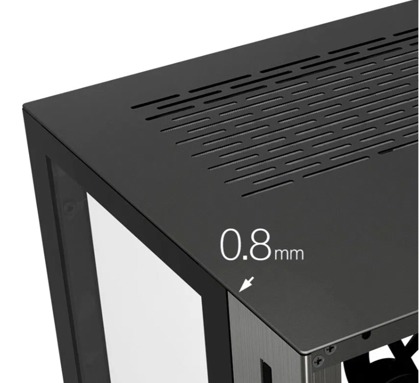

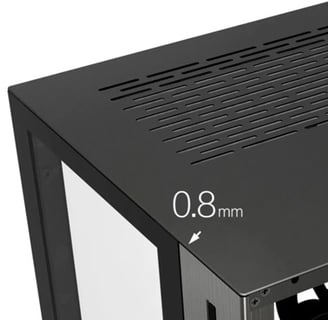

0.8mm SECC, Sturdy Build Construction

The Chassis’ body Structure is made out of 0.8mm thick SECC; Offer Sturdy and Strong Foundation

Connect2Aryans

0.8mm SECC, Sturdy Build Construction

The O11 Dynamic series from LIAN LI is developed in collaboration with DER8AUR, a world-renowned German overclocking, water cooling, and gaming evangelist. Always looking for ways to improve computer design and performance, DER8AUER volunteered his time to review and test the design concepts of the O11D series.

Starting with the first O11 Dynamic and up until the most recent models of the O11D series, LIAN LI appreciates the input from DER8AUER which helped make the O11D series exceptional cases, especially in terms of custom water cooling compatibility, ease of build, and features offered. As a result, DER8AUER’s seal of approval is elegantly displayed beside the LIAN LI logo, standing as a statement of quality and reliability.

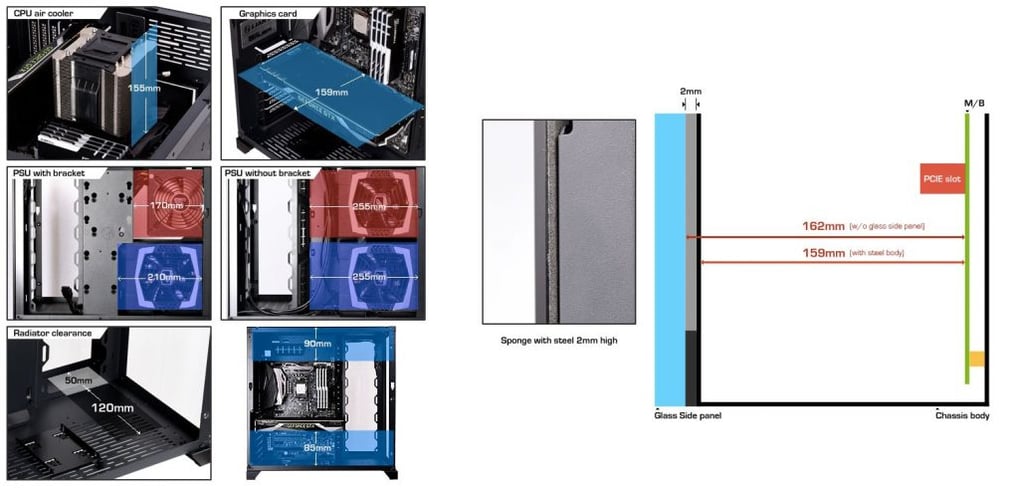

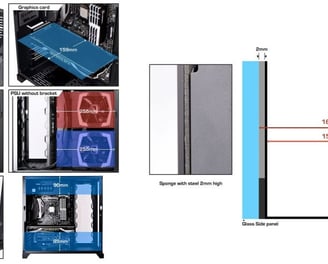

COMPATIBILITY

SPECIFICATIONS

Model

Color

Dimensions

Case Type

Structure

Materials

Expansion Slot

Drive Support

I/O Ports

M/B Type

Fan

Radiator

VGA Card

CPU Cooling

PSU

Filter

PC-O11DX PC-O11DW

BLACK WHITE

(W)272mm x(H)446mm x(D)445mm

Tower Chassis

Dual chamber

(Front)Tempered Glass+Aluminum (Side)Tempered Glass (Body)Steel

8

6 x 2.5″SSD or 3 x 2.5″SSD+ 3 x 3.5″ HDD

USB3.0 x2 , HD Audio USB3.1 Type-C x1 , HD Audio

E-ATX / ATX / Micro-ATX / Mini-itx

(Top) 120mm x3 / 140mm x2(Option) (Side) 120mm x3(Option) (Bottom) 120mm x3 (Option)

120x 360mm / 120x 240mm / 140x 280mm

length ≤420mm , height ≤159mm

≤155mm

2,(L)210mm~255mm(max)

(Top) x1,(Side) x2, (Bottom) x1
