DUOFACE RGB

Brilliant Lighting Scenery and Excellent Cooling Performance

Duoface RGB is a combination of elegance and cooling performance. With two distinctive front panels, one for dazzling RGB lighting effects; the other for superior airflow and optimized cooling performance. Moreover, it also includes two massive 140mm ARGB fans, a 120mm ARGB fan, and a highlighted logo to bring you advanced illumination control. Duoface RGB is a 230mm wide-body design mid tower case that offers abundant space for CPU cooler, cable management, compatibility for a E-ATX motherboard, and high-end graphic cards up to 330mm. It’s an upgrade in every aspect compared to the past gaming cases.

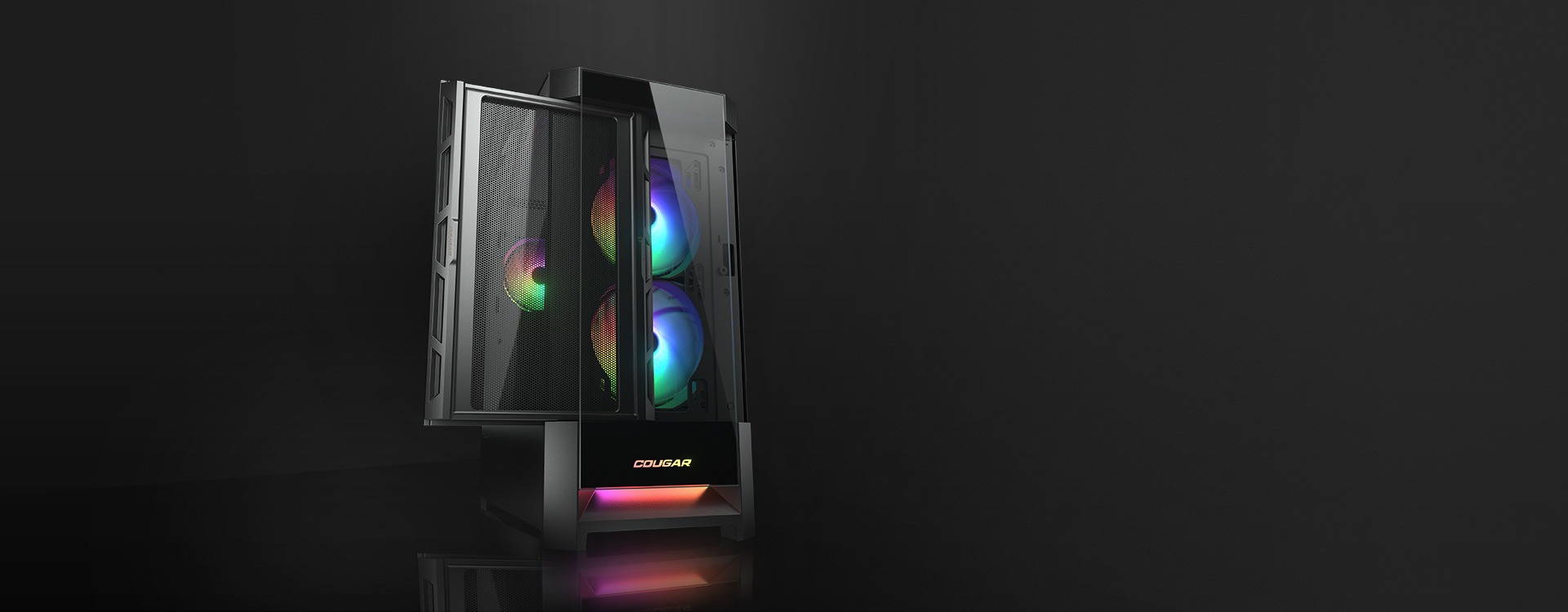

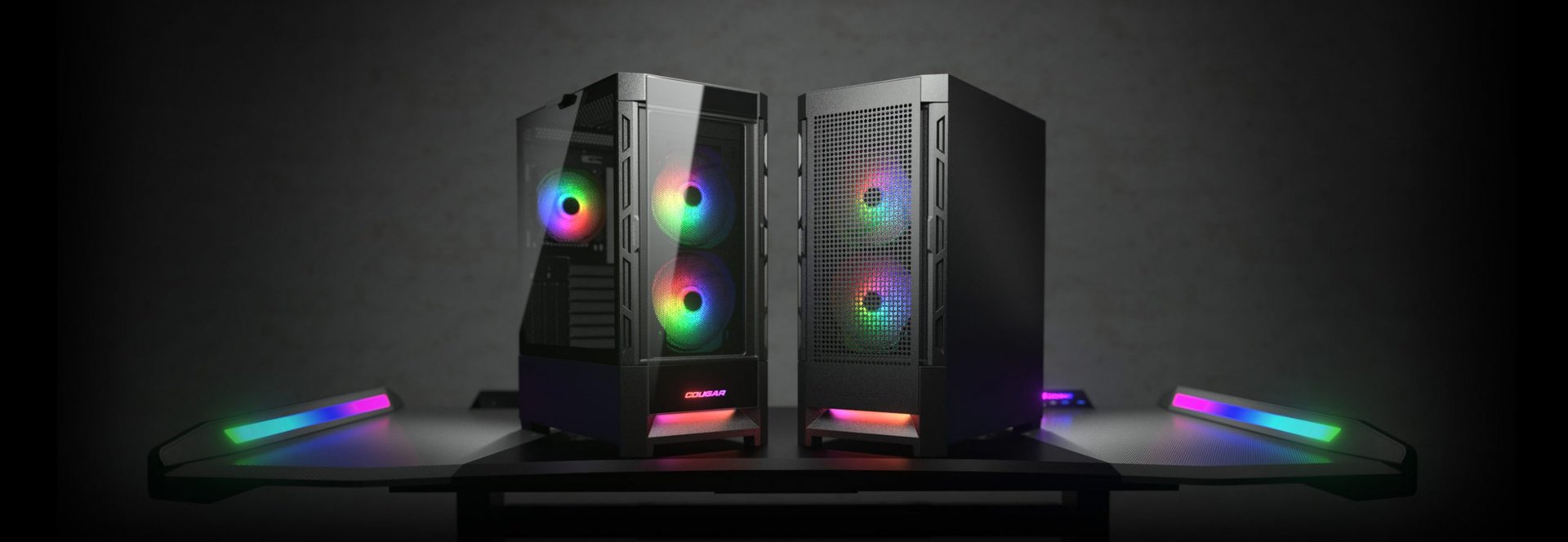

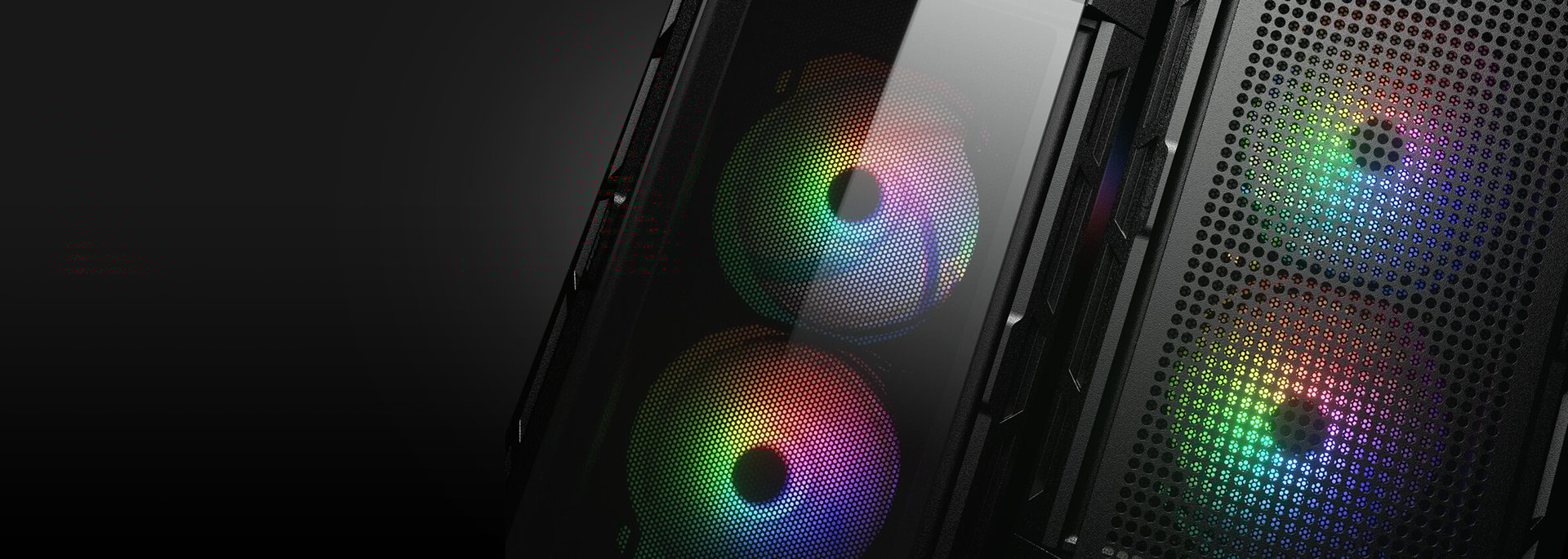

Define Your Style

Duoface RGB offers two distinctive front panels. The tempered glass panel is able to show off brilliant lighting scenery and the airflow panel has extensive fresh air intakes. It not only brings you unbeatable cooling performance, but also displays fantastic lighting to your theme.

Aesthetic and Functional

The innovative quick slide dust filter is a highly functional feature that merges aesthetically. Stylish design at the edges offers you uniqueness that no one can compare. You can easily slide off the dust filter without removing the front panel.

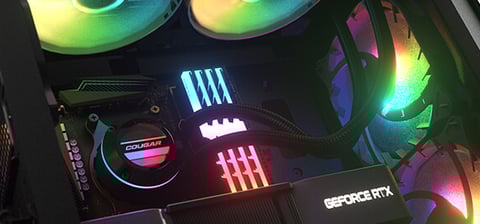

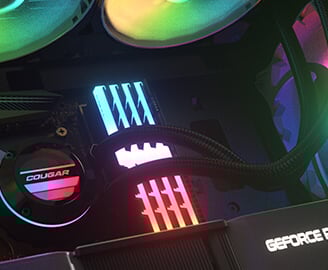

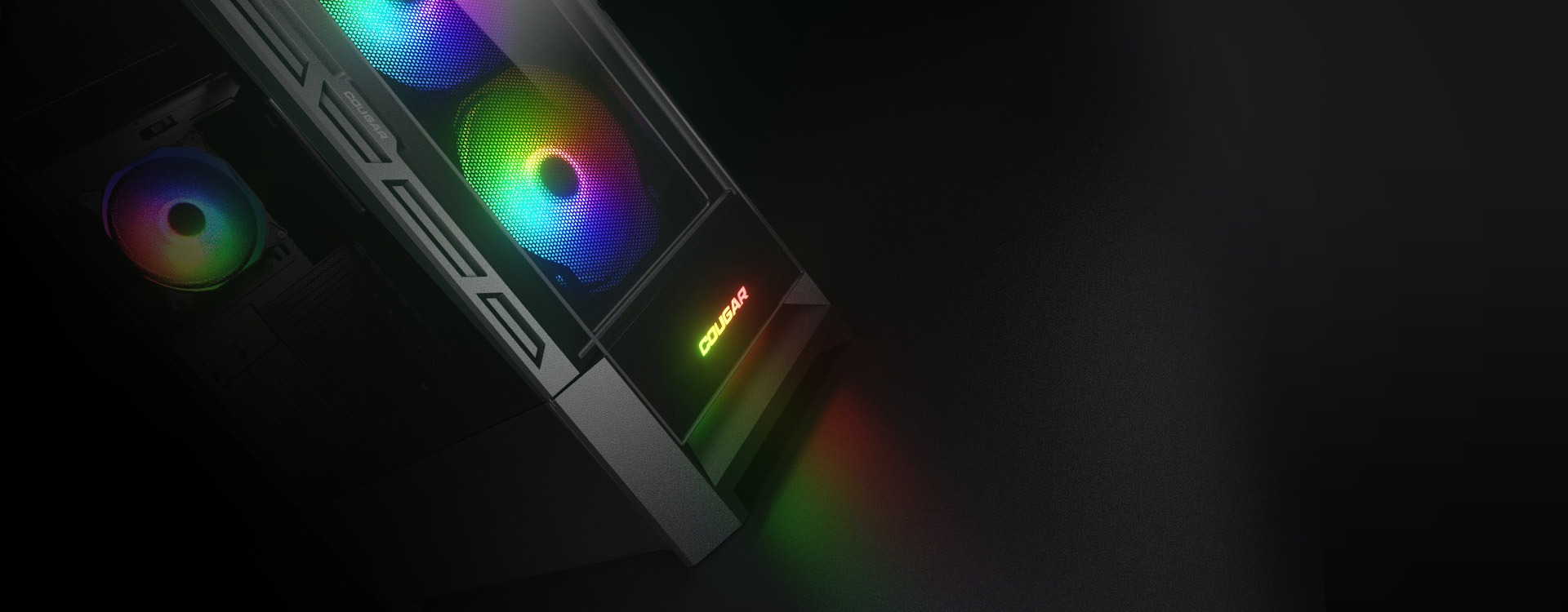

Incredible RGB Lighting

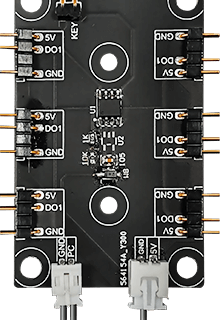

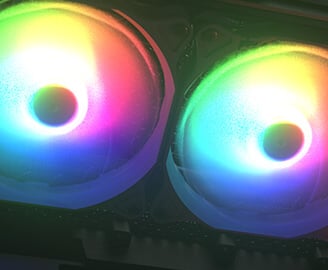

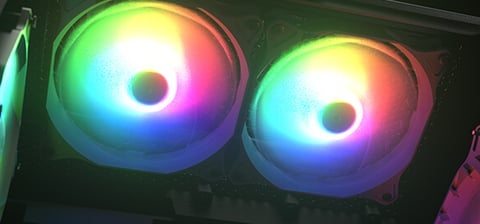

Duoface RGB has two massive 140mm ARGB fans, a 120mm ARGB fan, and a highlighted logo. You are free to control several amazing lighting effects with the dedicated RGB button. The built-in LED controller is compatible with motherboards’ 5V ARGB connection for system-wide lighting synchronization.

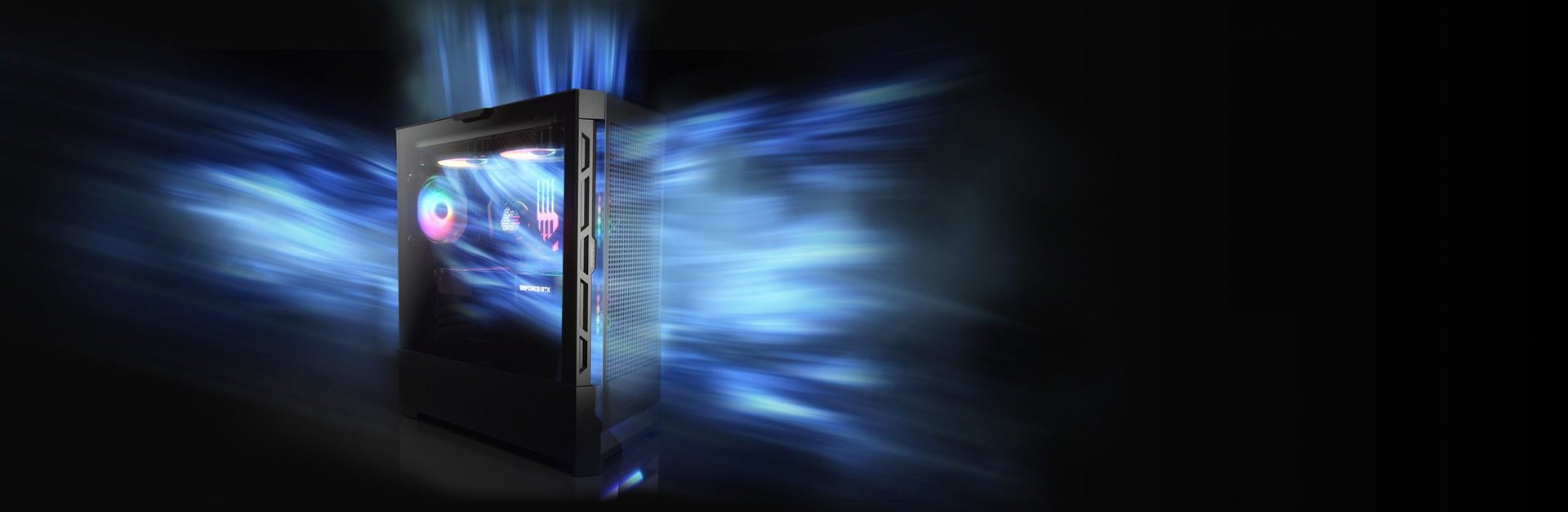

Unbeatable Cooling Performance

The airflow panel is forged from premium metal and perforated with 5.0mm diameter holes. Providing extensive fresh air intake that brings you unbeatable cooling performance.

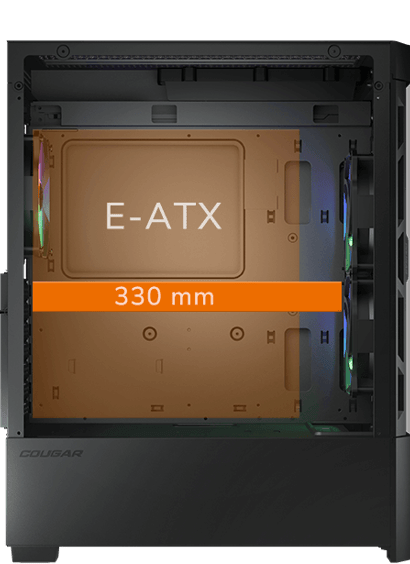

Abundant Space for High-end Components

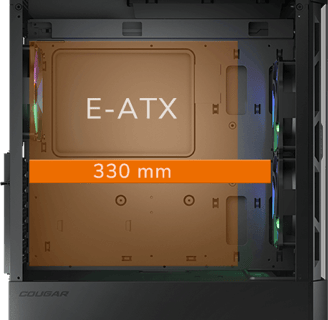

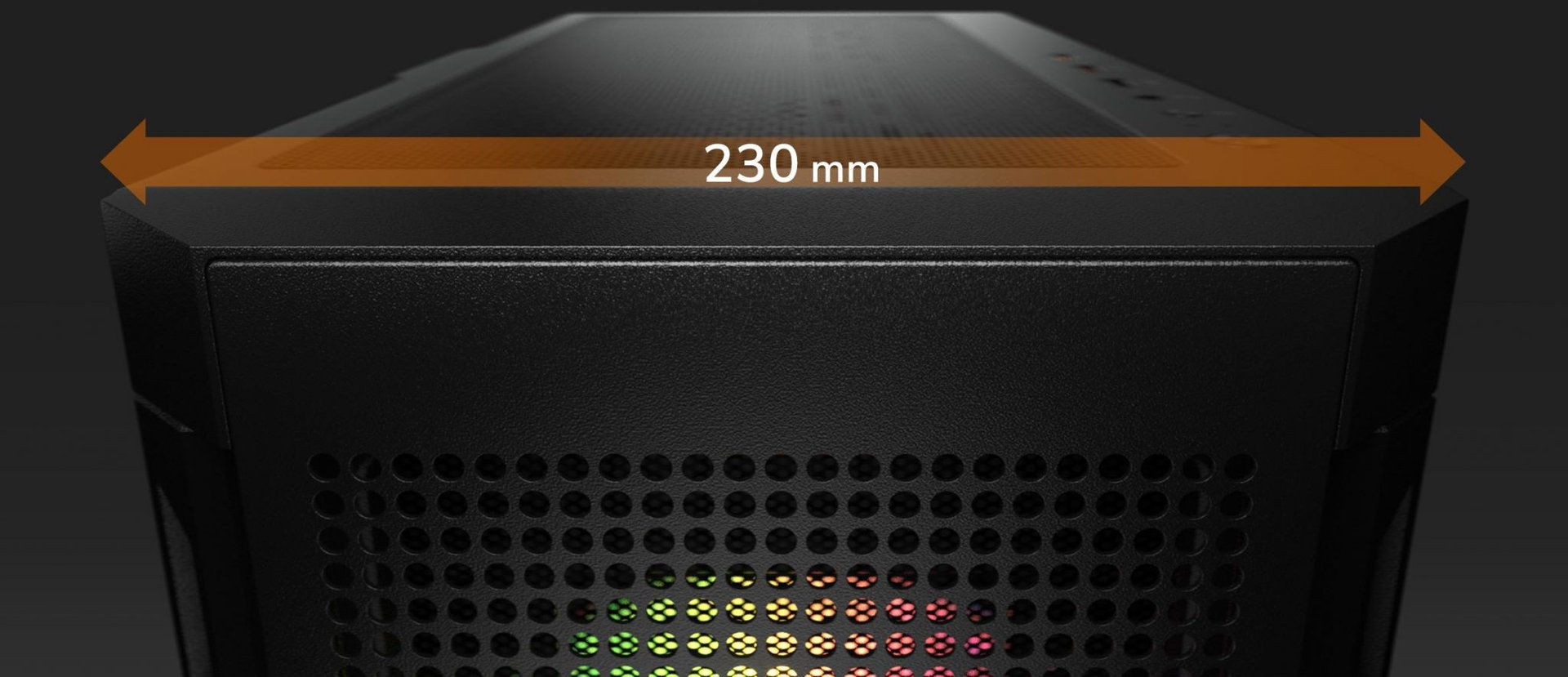

Duoface RGB’s 230mm wide-body design allows much larger interior space with better cooling performance and cable management. It can surely fit a E-ATX motherboard, a 330mm graphic card, two 3.5” HDDs and two 2.5” SSDs, which allows for the most extreme system builds.

Strong Cooling Performance

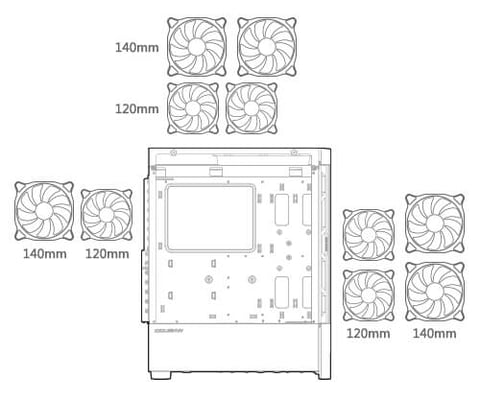

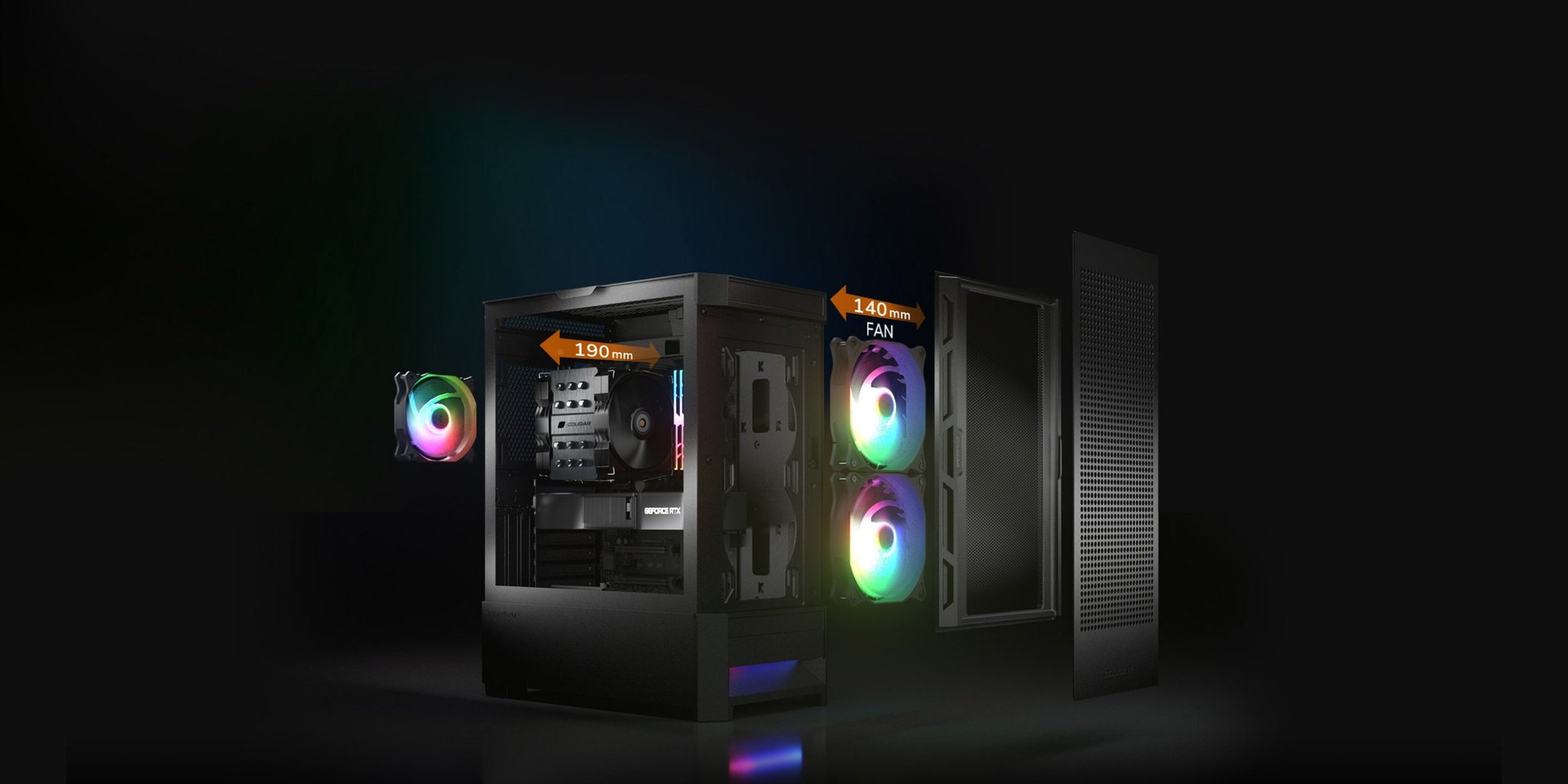

Duoface RGB’s interior space supports up to five fans, a 280mm water cooling radiator, and a 190mm height CPU cooler. This immense cooling potential refrains overheating on your critical components.

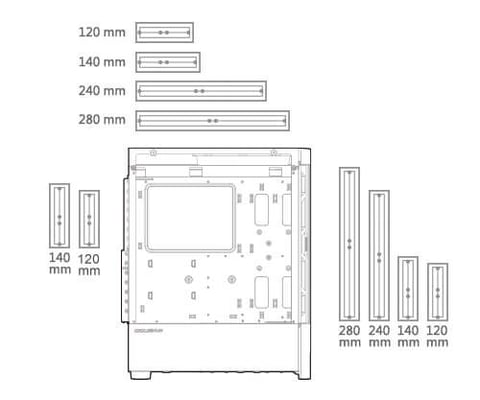

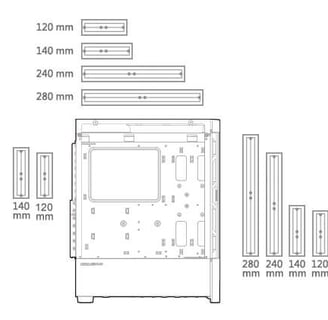

Water cooling radiator support

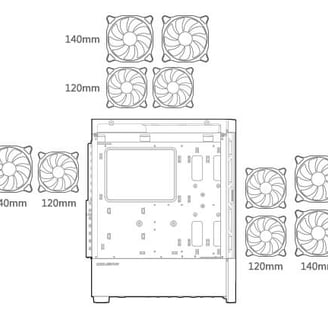

Air cooling support

Specifications

Product Name

Case Form Factor

Motherboard Type

Dimensions (WxHxD)

I/O Panel

3.5" Drive Bay

2.5" Drive Bay

Expansion Slots

Vertical GPU Support

Cooling Fan Support

Front

Top

Rear

Pre-installed Fans

Front

Rear

Speed

Connector

Maximun Number of Fans

Water Cooling Support

Front

Top

Rear

Transparent Left Panel

Onboard Lighting System

RGB Sync with M/B

COUGAR Logo RGB Light

Max. Graphics Card Length

Max. CPU Cooler Height

Max. PSU Length

Duoface RGB

Mid Tower

Mini ITX / Micro ATX / ATX / CEB / *E-ATX

230 x 491 x 386 (mm)
9.1 x 19.3 x 15.2 (in)

USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x1, RGB Button

2

2 (2 SSD trays included)

7+3

Yes

120mm x 2 / 140mm x 2

120mm x 2 / 140mm x 2

120mm x 1 / 140mm x 1

140mm ARGB fan x 2

120mm ARGB fan x 1

1000 RPM

5V 3 Pin (ARGB) / 3 Pin (Fan)

5 Max.

*280mm / 240mm / 140mm / 120mm

*280mm / 240mm / 140mm / 120mm

120mm / 140mm

4mm Tempered Glass

Yes

Yes

Yes

330 (mm) / 13 (in)

190 (mm) / 7.5 (in)

160 (mm) / 6.3 (in)
