Born to push the limits

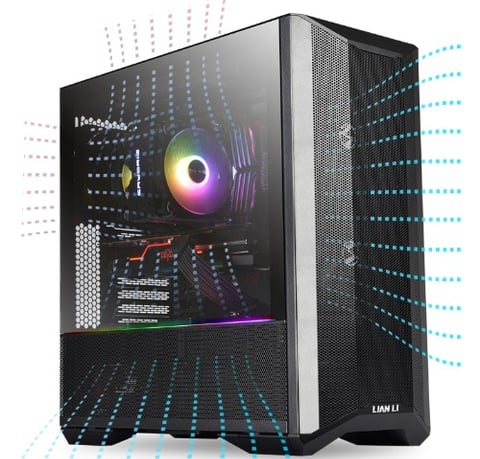

LANCOOL II MESH Performance features a mesh front panel and mesh bottom left shroud panel, honeycomb vent design and built-in PWM fans, ensuring bountiful airflow delivered to your components while the system runs at peak performance.

Born to push the limits

  • Premium look

  • Unprecedented modularity

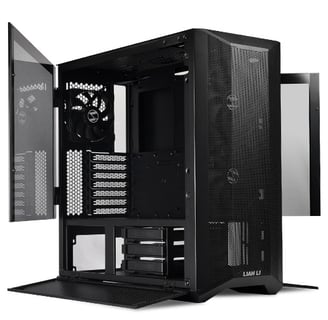

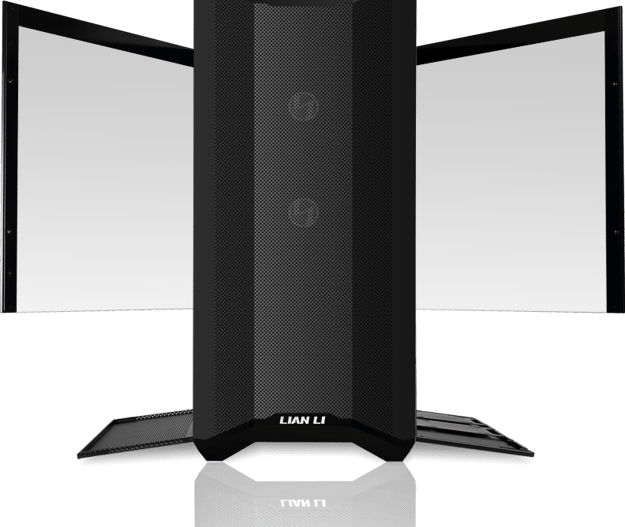

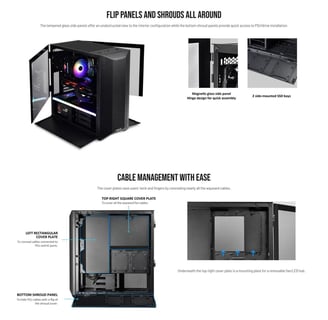

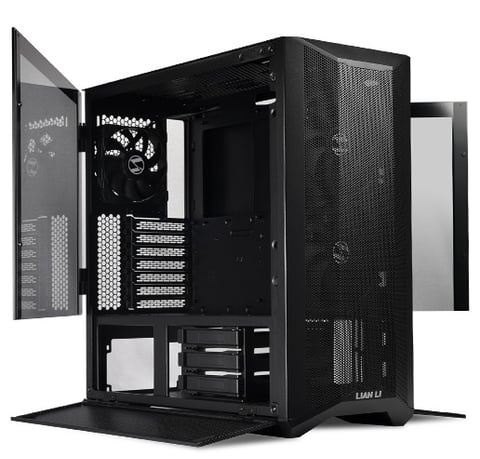

  • Hinged flip panels all around

  • Optimized cooling support

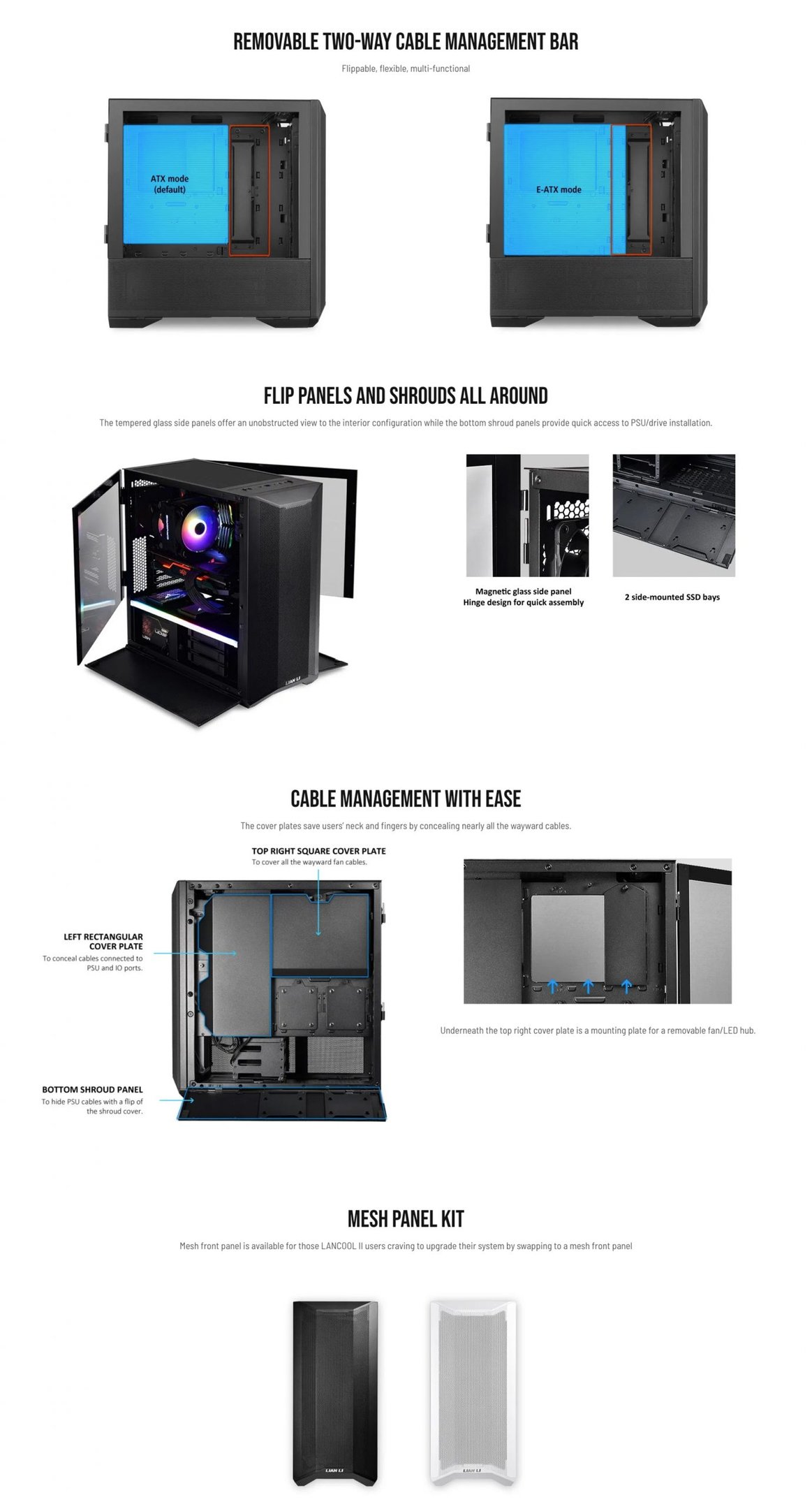

  • Cable management with ease

  • Optimized storage configuration

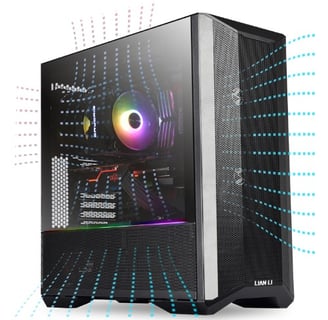

MORE ADVANCED COOLING SUPPORT

Optimized airflow is a result of the collaboration between the brand-new mesh design, additional exhaust vent holes, and three high-performance PWM cooling fans.

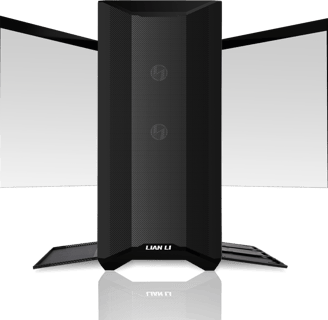

MESH FRONT PANEL

HONEYCOMB VENTS

MESH BOTTOM LEFT SHROUD PANEL

HIGH-PERFORMANCE BUILT-IN PWM FANS

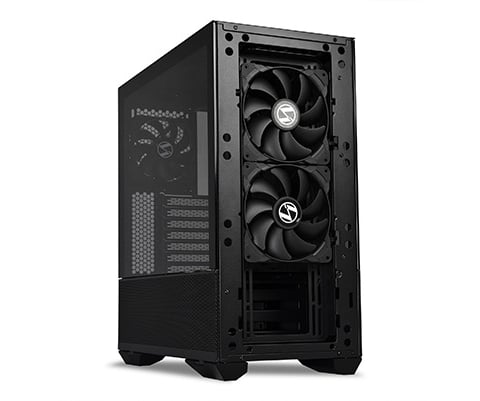

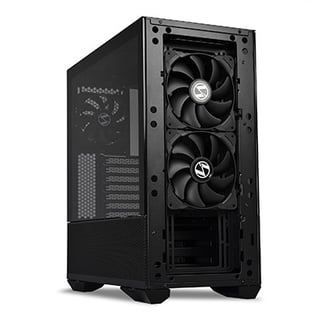

2 x 140mm PWM intake fans pre-installed at the front and 1 x 120mm exhaust fan in the back of the PERFORMANCE EDITION produce ample airflow, keeping your system running at peak performance.

Front: 2 x 140mm PWM fans

140mm PWM fans

  • RPM range: 600~1200 RPM

  • Static pressure: 1.49mmH2O (maximum)

  • Airflow: 60.56 CFM (maximum)

Back: 1 x 120mm PWM fans

120mm PWM fans

  • RPM range: 600~1500 RPM

  • Static pressure: 1.78mmH2O (maximum)

  • Airflow: 54.6 CFM (maximum)

EXPERIENCE FAN CONTROL ON A WHOLE NEW LEVEL

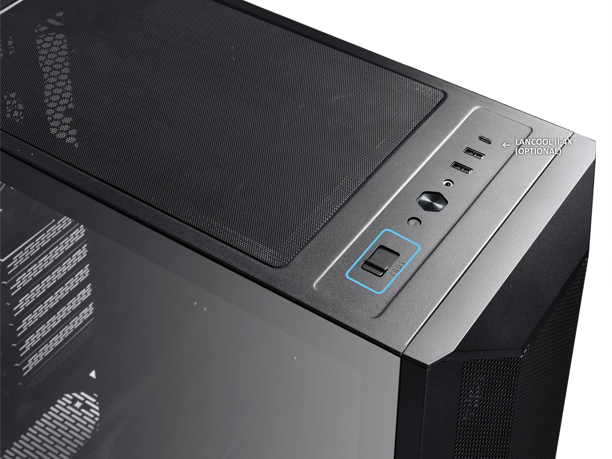

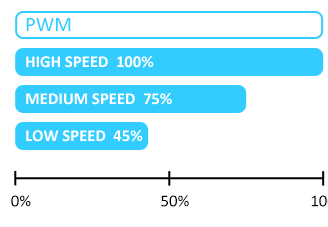

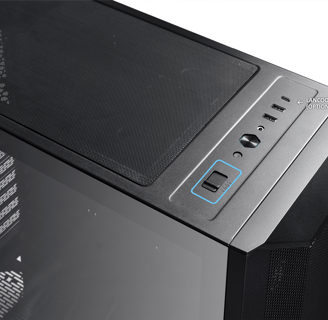

The four-mode fan controller on the top front allows you to experience fan control on a whole new level. Select L for casual use like internet browsing, press H when you’re pushing your GPU(s) and CPU hard.

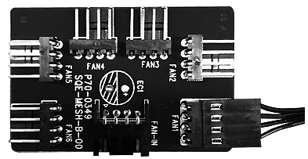

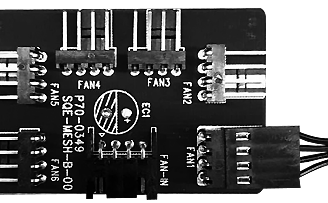

The included hub supports up to 6 PWM fans with either 3-PIN or 4-PIN headers.

MODULAR PSU SHROUD COVER

The space between the top and bottom chamber now features two removable PSU shroud covers to house either 2 x 2.5” SSDs or can be removed to fit 2 x 120mm fans.

When 2 fans are mounted, and the cover plates removed, ventilation efficiency is even better.

Even when 2 x SSDs are mounted, the vents on the PSU shroud covers guarantee good ventilation.

Compared to the former integrated design, the modular PSU shroud covers allow users to remove them for an unobstructed airflow between the top and bottom chamber.

MULTI-WAY FAN/RADIATOR BRACKET

The multi-way bracket revolutionizes your notion of fan/radiator installation by offering 4 installation options to best fit your needs.

55MM scenario

Closer to the motherboard for more direct cooling

110MM scenario

Closer to the front panel for thick radiators

HOW TO INSTALL THE MULTI-WAY FAN/RAD BRACKET

The multi-way bracket revolutionizes your notion of fan/radiator installation by offering 4 installation options to best fit your need.

ATTENTION!

Do not install a 140/280MM radiator in the inner side of the bracket otherwise irrepairable deformation might occur. The correct way to install is to mount fans first then place a radiator on top of the fans.

OPTIMIZED STORAGE CONFIGURATION

With the modular drive cage, side-mounted SSD bays, and additional SSD space on the modular PSU shroud cover, the LANCOOL II MESH is capable of holding up to 9 drives.

TOOLLESS SLIDING DRIVE CAGE

Slide the hard drive cage along its bottom track to the position that best fits your interior configuration.

DRIVE INSTALLATION GUIDE.

SUPPORT UP TO 9 DRIVES

Modular drive cage: 3 x 3.5” HDDs/2.5” SSDs

Side-mounted SSD bays behind motherboard tray:

2 x 2.5” SSDs

Side-mounted SSD bays at the bottom right flip shroud:

2 x 2.5” SSDs

OPTIMIZED STORAGE CONFIGURATION

With the modular drive cage, side-mounted SSD bays, and additional SSD space on the modular PSU shroud cover, the LANCOOL II MESH is capable of holding up to 9 drives.

SPECIFICATIONS

Model

Dimensions

Motherboard

PSU

Color

Materials

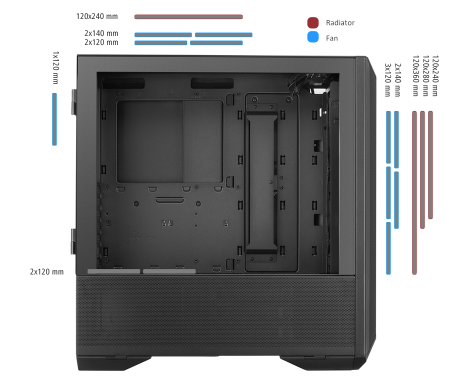

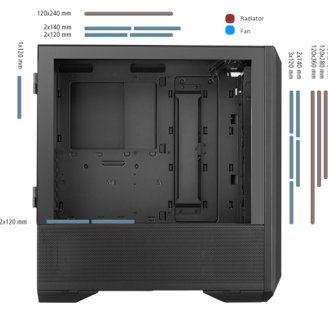

Fan Support

Radiator

VGA Length

CPU Clearance

Drive

Slot

I/O Ports

Dust Filters

Incl Fans

LANCOOL II MESH PERFORMANCE

(D) 478mm x (W) 229mm x (H) 494mm

E-ATX(width: under 280mm)/ATX/M-ATX/ITX

210mm

Black

Steel

4.0mm tempered glass (both sides)

Front: 2 x 140mm or 3 x 120mm
Top: 2 x 120mm or 2 x 140mm
Top of PSU chamber: 2 x 120mm

Front (multi-way fan/radiator bracket): 1 x 360/280/240mmTop: 1 x 240mm (aligned to the left)

384mm

176mm

Behind MB Tray: 2 x 2.5″ SSDBehind the right flip panel: 2 x 2.5”SSD

Hard Drive Cage: 3 x 3.5″ HDD/2.5″ SSD

Above PSU Chamber: 2 x 2.5″ SSD

7

1 x Fan speed control button1 x TRRS AUDIO

2 x USB 3.0

1 x USB 3.1 TYPEC

1 x Top (magnetic), 1 x Bottom (tray)

2 x 140mm PWM Fan (front)
Rated Speed:600 ±200 (30% Duty)-1200RPM ±10%
Air Flow:60.56CFM
Noise:25.8dB(A)1x 120mm PWM fan (rear)
Rated Speed:600 ±200 (30% Duty)-1500RPM ±10%
Air Flow:54.6CFM
Noise:26.1dB(A)
