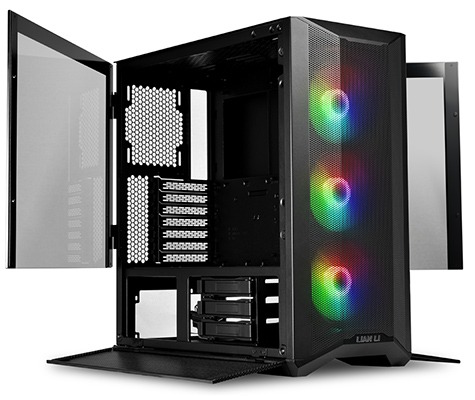

Born to push the limits

  • Premium look

  • Unprecedented modularity

  • Hinged flip panels all around

  • Optimized cooling support

  • Cable management with ease

  • Optimized storage configuration

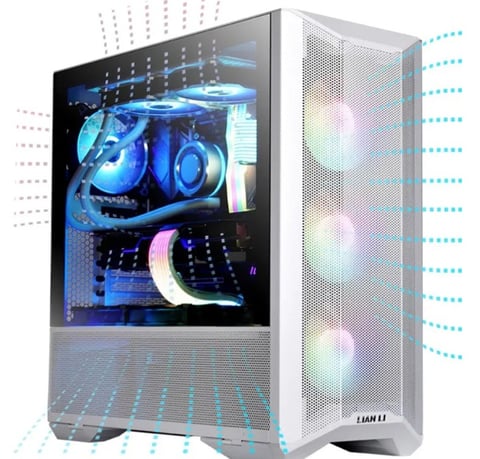

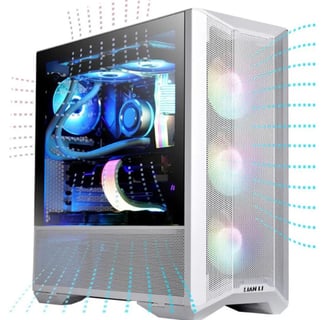

MORE ADVANCED COOLING SUPPORT

Optimized airflow is a result of the collaboration between the brand-new mesh design, additional exhaust vent holes, and three high-performance ARGB cooling fans.

MESH FRONT PANEL

HONEYCOMB VENTS

MESH BOTTOM LEFT SHROUD PANEL

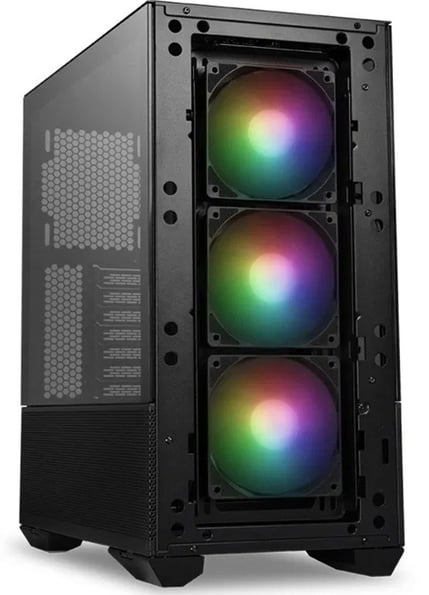

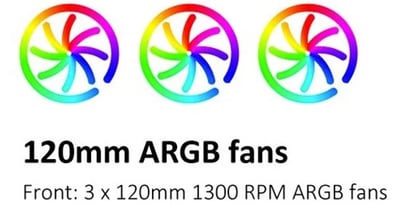

BUILT-IN BOUNTIFUL ARGB FANS

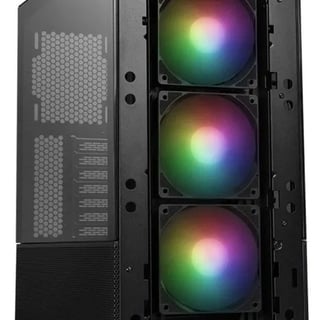

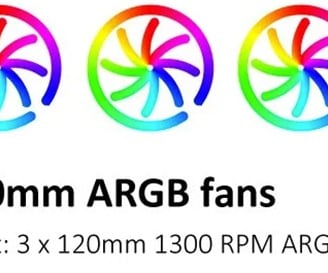

3 x 120mm ARGB intake fans pre-installed at the front produce ample airflow while still offering bountiful RGB to liven up your PC build.

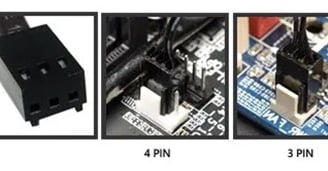

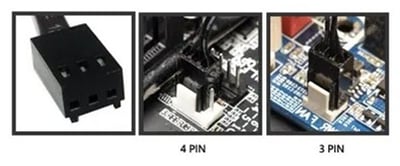

The fan power plug connecting to the 3 included fans is compatible with these two fan headers on the motherboard

(splitter cable is not included)


EXPERIENCE ARGB CONTROL ON A WHOLE NEW LEVEL

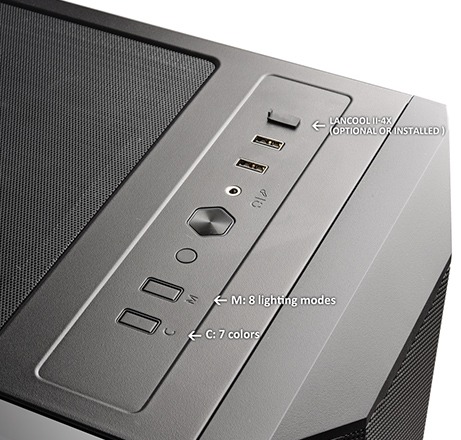

Lighting effects of the 3 included ARGB fans can be fully controlled through the C button and M button located on the top front. Switching between 8 lighting modes has never been this easy.

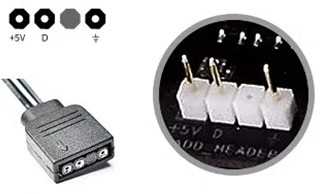

By plugging the fan hub’s ARGB header into the motherboard’s 3-PIN 5V addressable RGB headers, you’ll be able to synchronise the lighting effects with the motherboard software by switching the M button to the 8th mode.

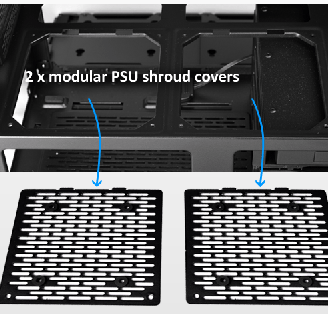

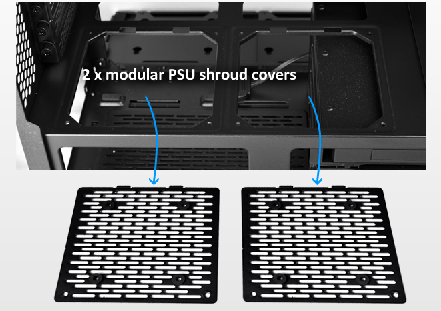

MODULAR PSU SHROUD COVER

The space between the top and bottom chamber now features two removable PSU shroud covers to house either 2 x 2.5” SSDs or can be removed to fit 2 x 120mm fans.

When 2 fans are mounted, and the cover plates removed, ventilation efficiency is even better.

Even when 2 x SSDs are mounted, the vents on the PSU shroud covers guarantee good ventilation.

Compared to the former integrated design, the modular PSU shroud covers allow users to remove them for an unobstructed airflow between the top and bottom chamber.

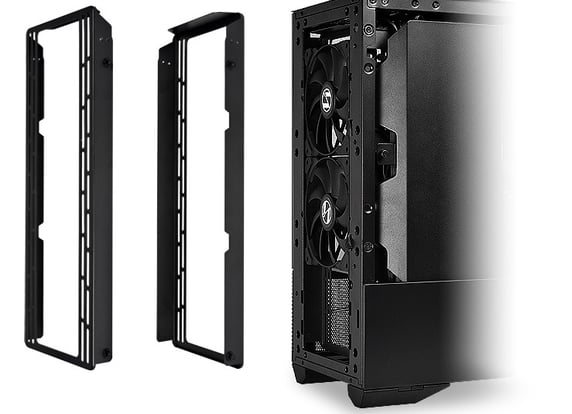

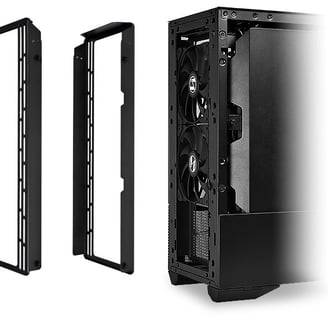

MULTI-WAY FAN/RADIATOR BRACKET

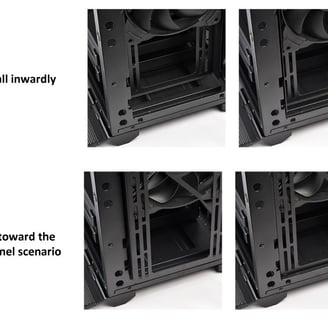

The multi-way bracket revolutionizes your notion of fan/radiator installation by offering 4 installation options to best fit your needs.

55MM scenario

Closer to the motherboard for more direct cooling

110MM scenario

Closer to the front panel for thick radiators

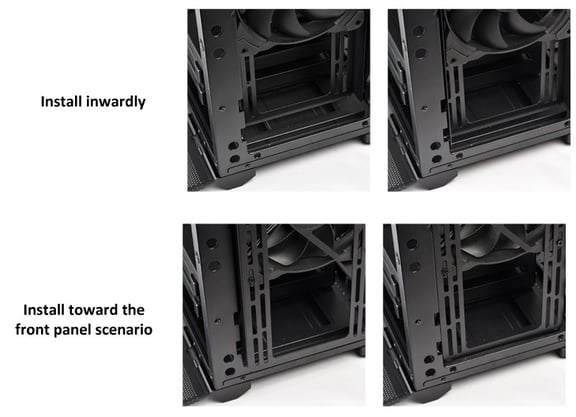

HOW TO INSTALL THE MULTI-WAY FAN/RAD BRACKET

The multi-way bracket revolutionizes your notion of fan/radiator installation by offering 4 installation options to best fit your need.

ATTENTION!

Do not install a 140/280MM radiator in the inner side of the bracket otherwise irrepairable deformation might occur. The correct way to install is to mount fans first then place a radiator on top of the fans.

OPTIMIZED STORAGE CONFIGURATION

With the modular drive cage, side-mounted SSD bays, and additional SSD space on the modular PSU shroud cover, the LANCOOL II MESH is capable of holding up to 9 drives.

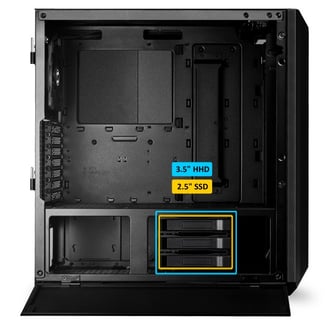

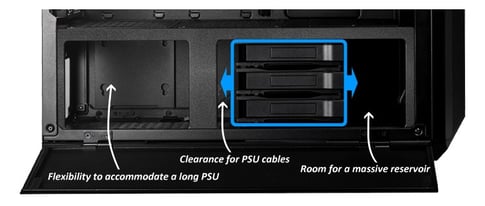

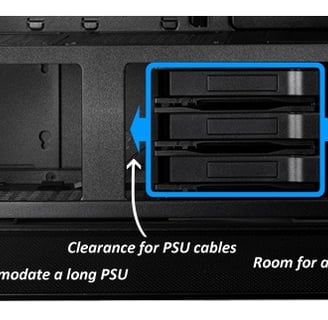

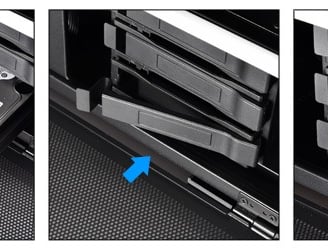

TOOLLESS SLIDING DRIVE CAGE

Slide the hard drive cage along its bottom track to the position that best fits your interior configuration.

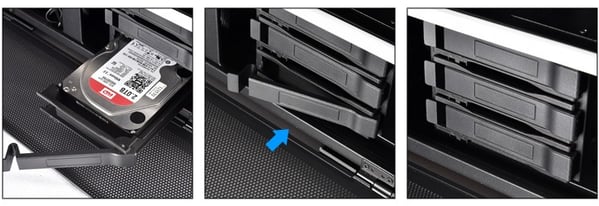

DRIVE INSTALLATION GUIDE.

SUPPORT UP TO 9 DRIVES

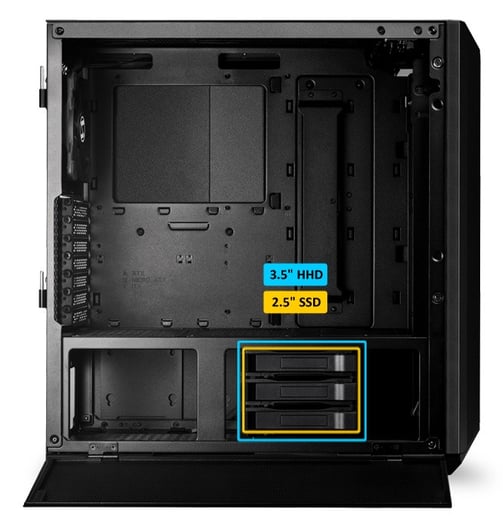

Modular drive cage: 3 x 3.5” HDDs/2.5” SSDs

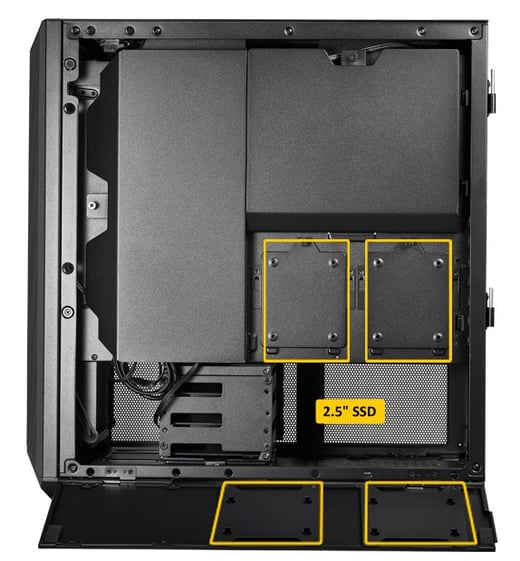

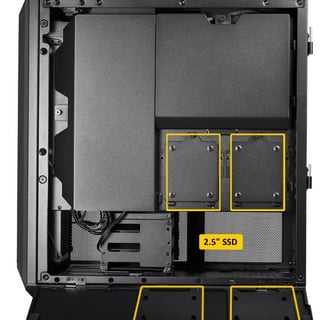

Side-mounted SSD bays behind motherboard tray:

2 x 2.5” SSDs

Side-mounted SSD bays at the bottom right flip shroud:

2 x 2.5” SSDs

REMOVABLE TWO-WAY CABLE MANAGEMENT BAR

Flippable, flexible, multi-functional

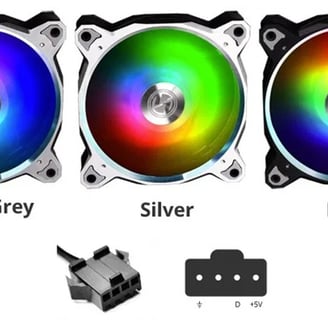

ULTIMATE COOLING SUPPORT

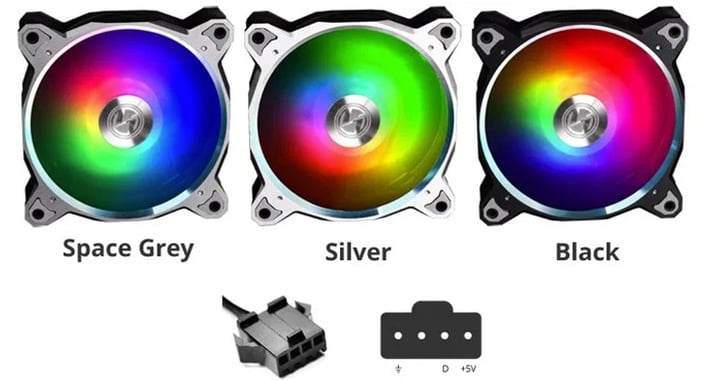

Add the BORA DIGITAL ARGB FANs to have more vibrant RGB and increased cooling efficiency for your LANCOOL II MESH build!

To further control the added BORA DIGITAL FANs through the C and M buttons, connect the header to one of the headers on the cable connecting to 3 included fans.

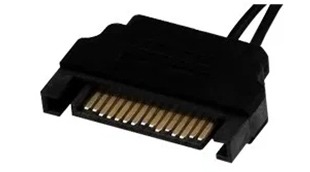

If your motherboard doesn’t have any 5V addressable RGB headers, make sure to connect the SATA cable connecting the hub to the power supply and use the C and M buttons to control the lighting effects.

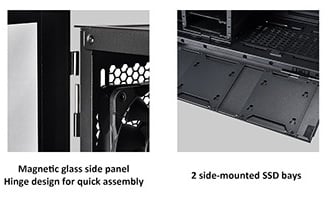

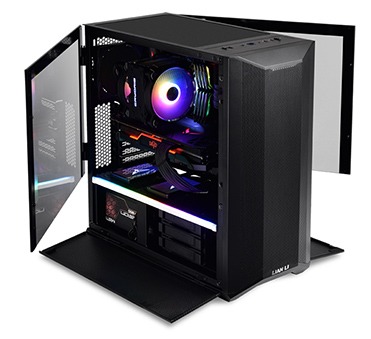

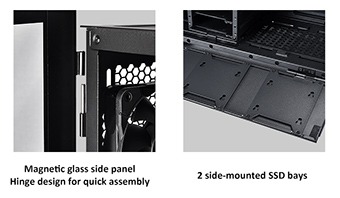

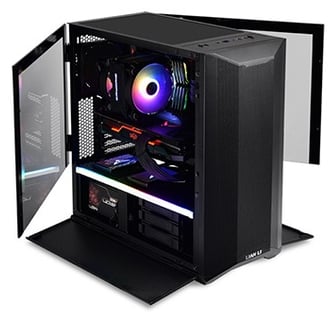

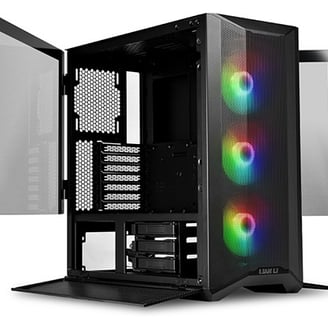

FLIP PANELS AND SHROUDs ALL AROUND

The tempered glass side panels offer an unobstructed view to the interior configuration while the bottom shroud panels provide quick access to PSU/drive installation.

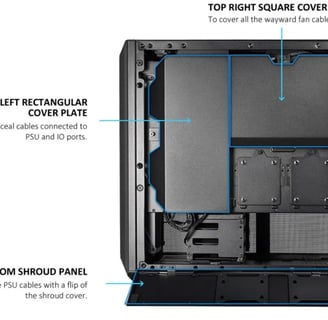

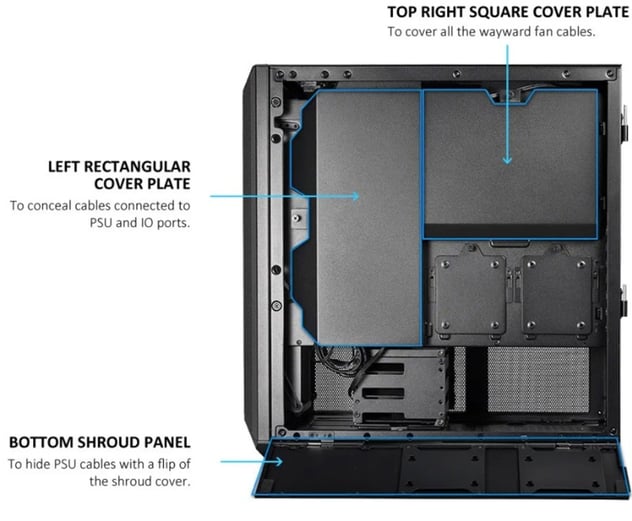

CABLE MANAGEMENT WITH EASE

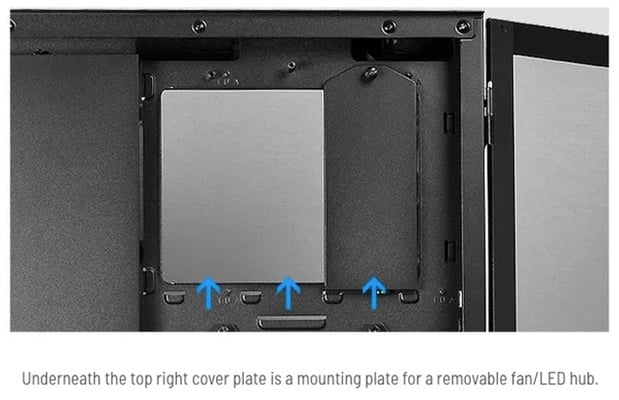

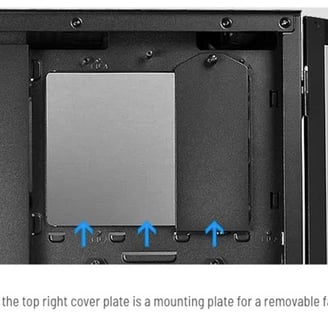

The cover plates save users’ neck and fingers by concealing nearly all the wayward cables.

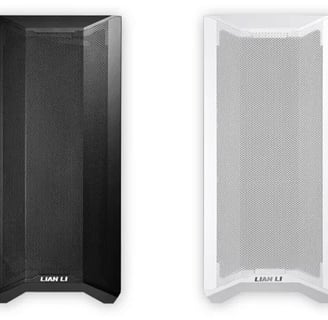

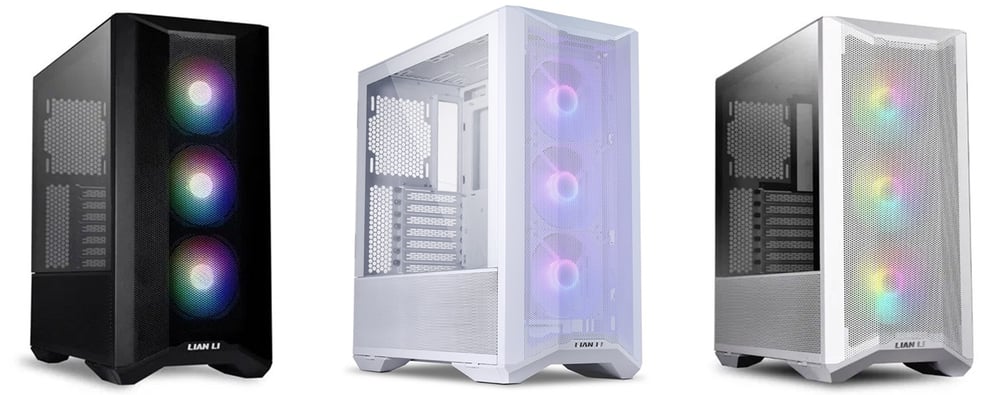

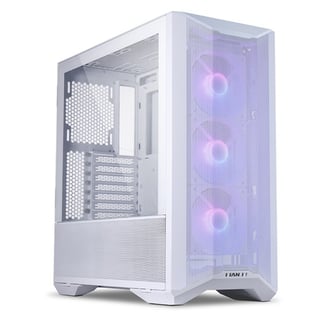

AVAILABLE IN BLACK OR WHITE / SNOW EDITION

LANCOOL II MESH RGB EDITION provides users with two color choices. With the attractive built-in RGB touch, building your own one-of-a-kind dream PC has never been this easy.

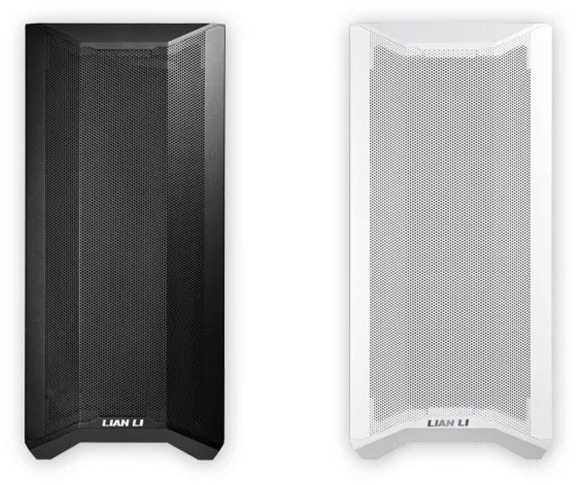

MESH PANEL KIT

Mesh front panel is available for those LANCOOL II users craving to upgrade their system by swapping to a mesh front panel.

SPECIFICATIONS

Model

Dimensions

Motherboard

PSU

Color

Materials

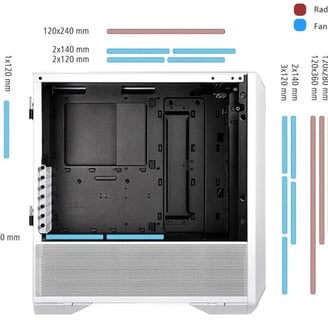

Fan Support

Radiator

VGA Length

CPU Clearance

Drive

Slot

I/O Ports

Dust Filters

Incl Fans

LANCOOL II MESH RGB LANCOOL II MESH RGB+ type C

(D) 478mm x (W) 229mm x (H) 494mm

E-ATX(width: under 280mm)/ATX/M-ATX/ITX

210mm

black/white black/ snow edition

Steel
4.0mm tempered glass (both sides)

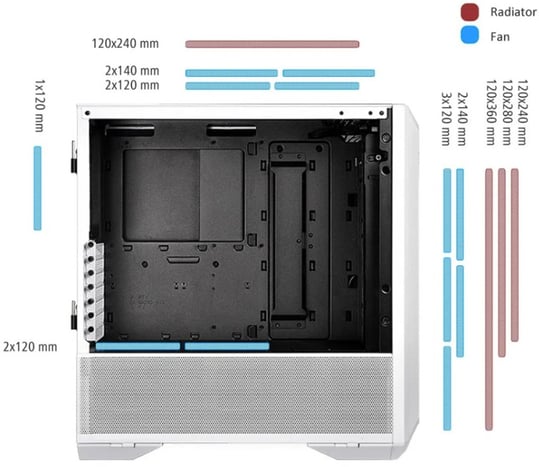

Front (multi-way fan/radiator bracket): 3 x 120mm or 2 x 140mm
Top: 2 x 120/140mm
Rear: 1 x 120mm
Above PSU Chamber: 2 x 120mm

Front (multi-way fan/radiator bracket): 1 x 360/280/240mm
Top: 1 x 240mm (aligned to the left)

384mm

176mm

Behind MB Tray: 2 x 2.5″ SSD
Behind the right flip panel: 2 x 2.5”SSD
Hard Drive Cage: 3 x 3.5″ HDD/2.5″ SSD
Above PSU Chamber: 2 x 2.5″ SSD

7

C button for color control
M button for lighting mode control
1 x TRRS AUDIO
2 x USB 3.0
1 x USB 3.1 TYPEC

1 x Top (magnetic), 1 x Bottom (tray)

3 x included 120mm 3-PIN 1300 RPM ARGB fans
Rated Speed:1300RPM ±10 %
Air Flow:49.14CFM
Noise:25.0dB(A)
