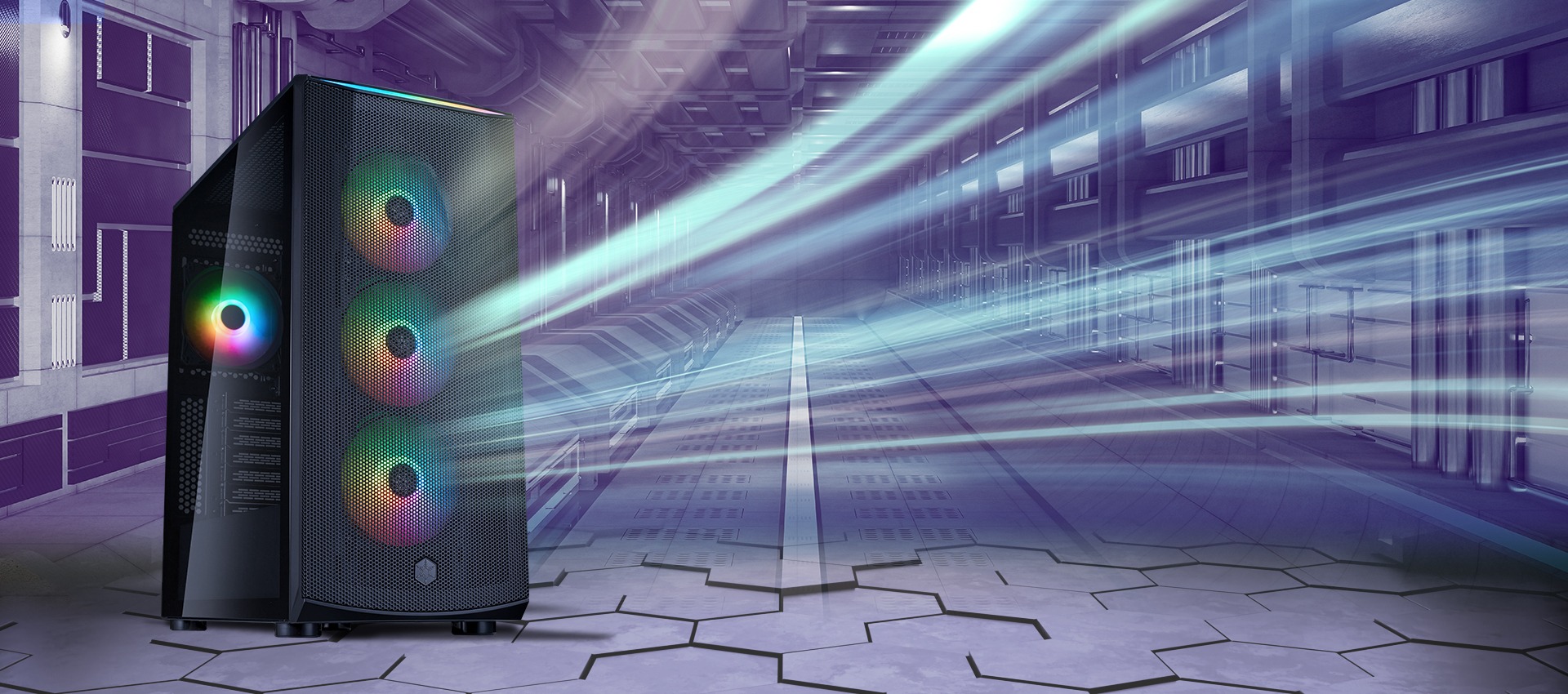

Unparalleled cooling performance

Front panel designed with a fully perforated mesh, allowing for an immense, unobstructed airflow performance.

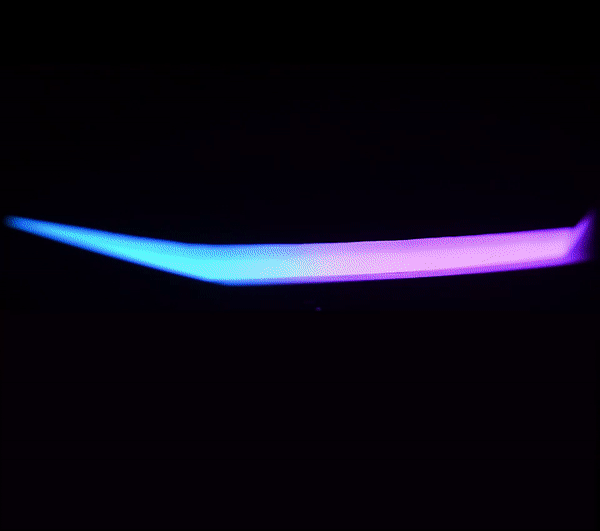

Stunning ARGB lighting effects

The front panel features an embedded ARGB light bar at the top, with the included ARGB lighting fans at the front, offers a spectacular aesthetic aura to a high airflow performance chassis

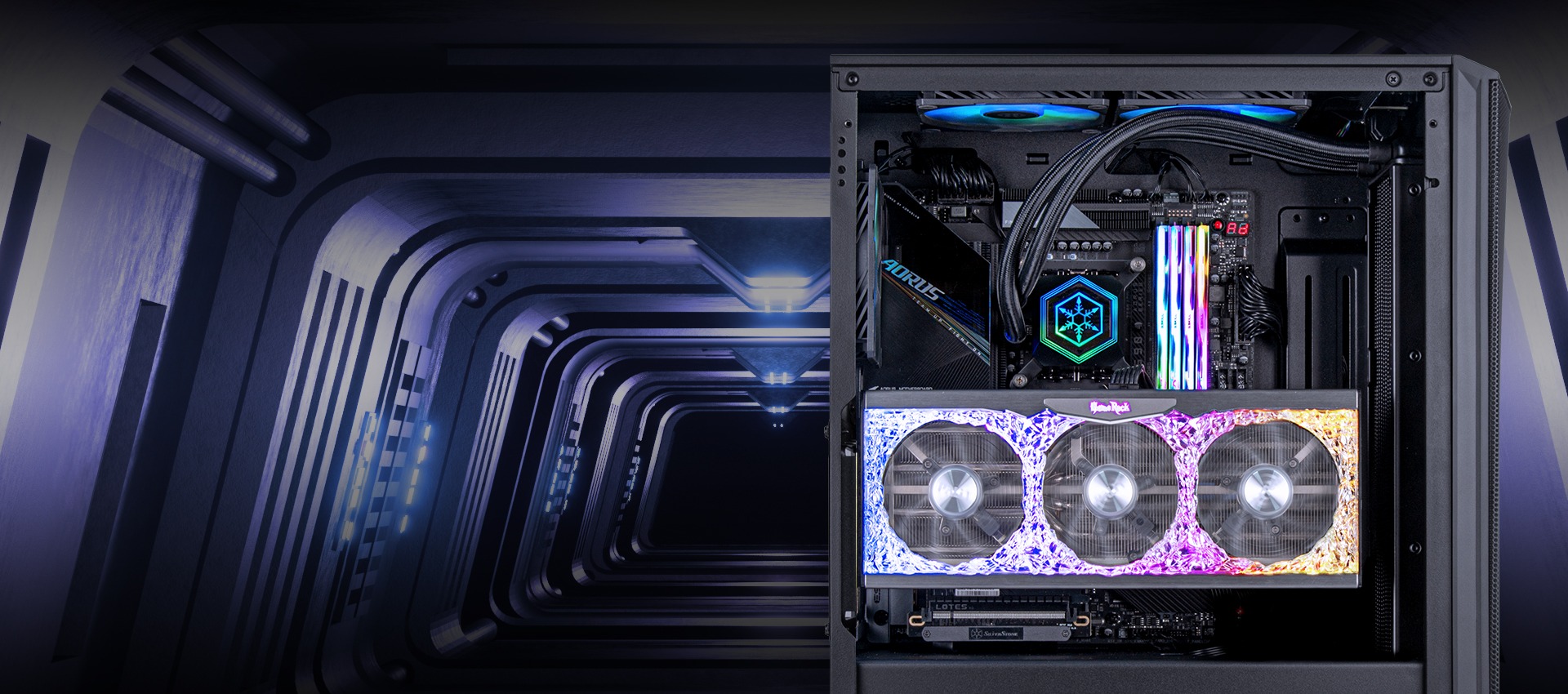

Tremendous liquid cooling support

A spacious interior allows for fitment of 360mm radiator at the front and 280mm radiator at the top.

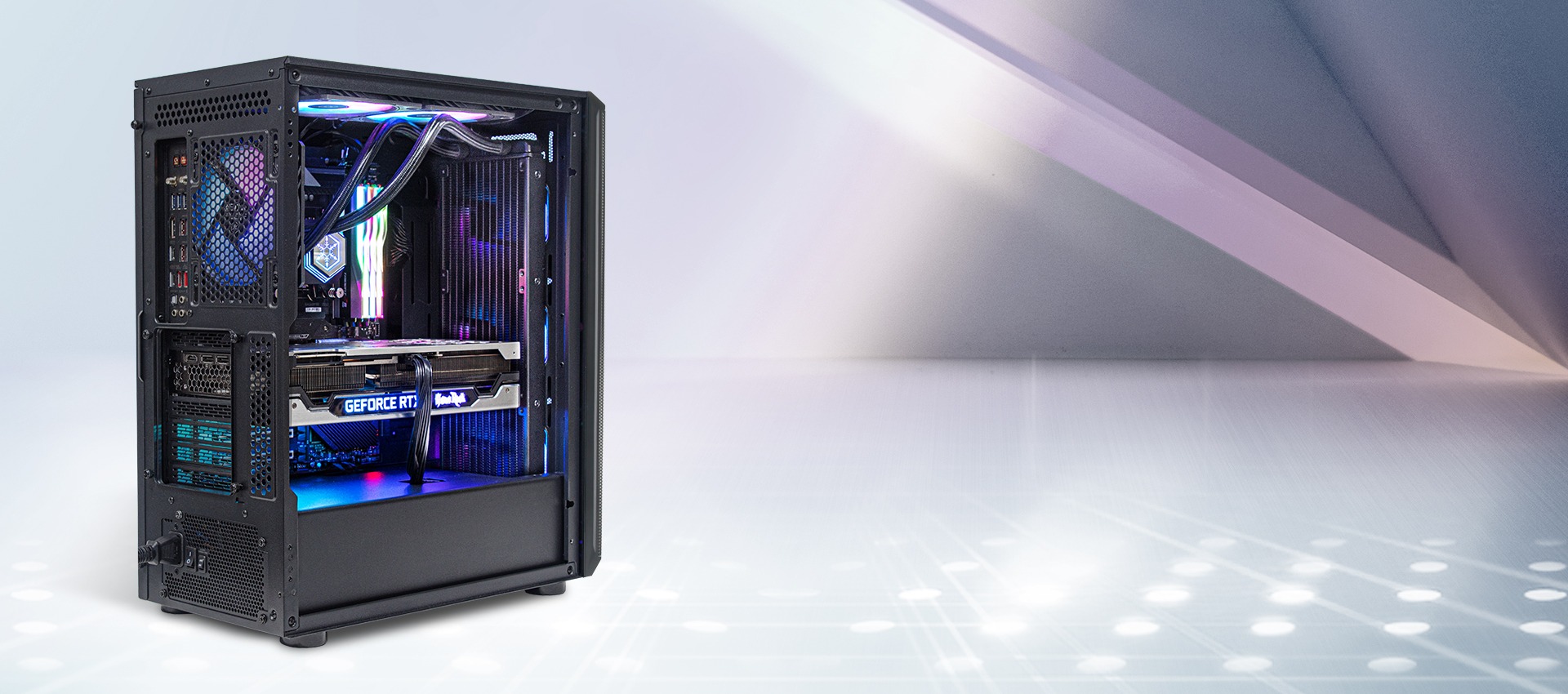

Vertical or horizontal GPU mount

A rotatable PCI slots have been implemented for users who wishes to flaunt their graphics card in a vertical orientation.

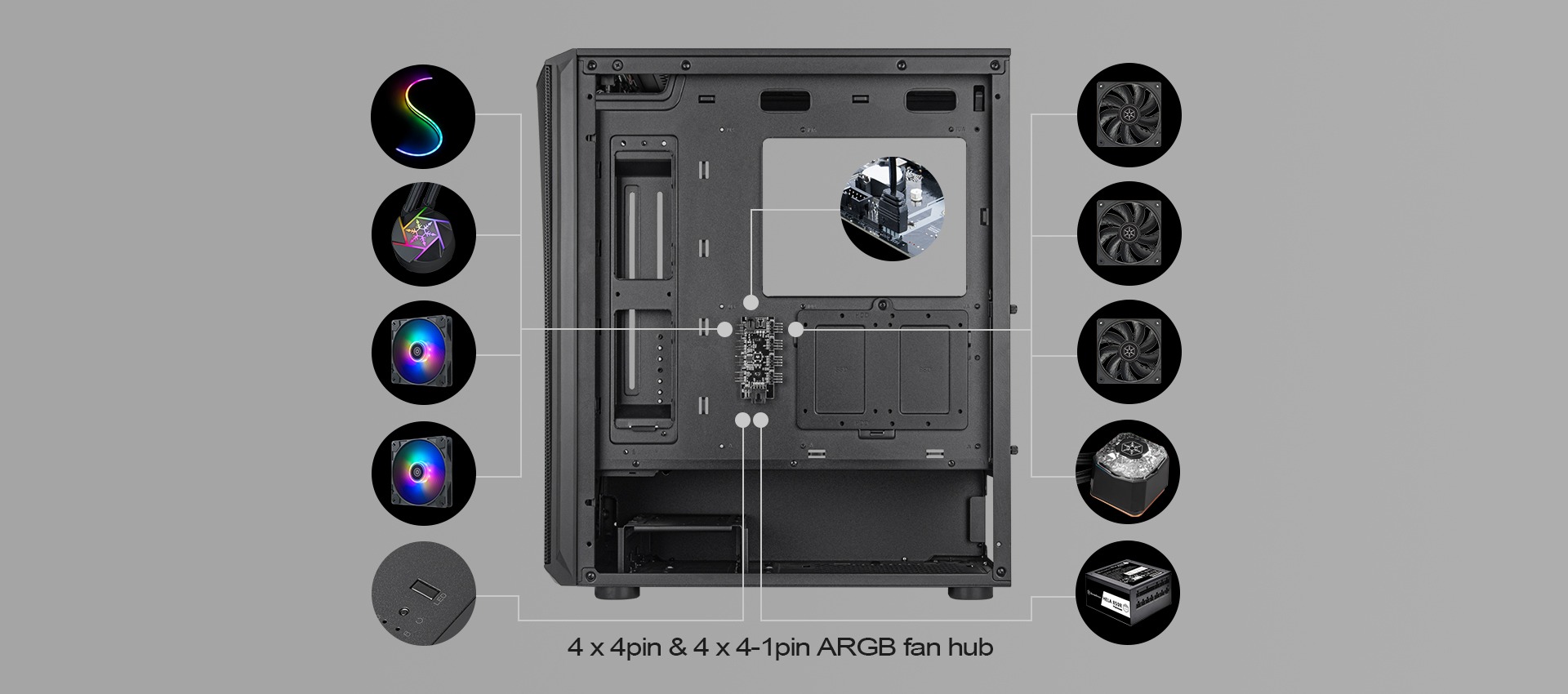

Highly versatile layout to fuel creativity and inventiveness

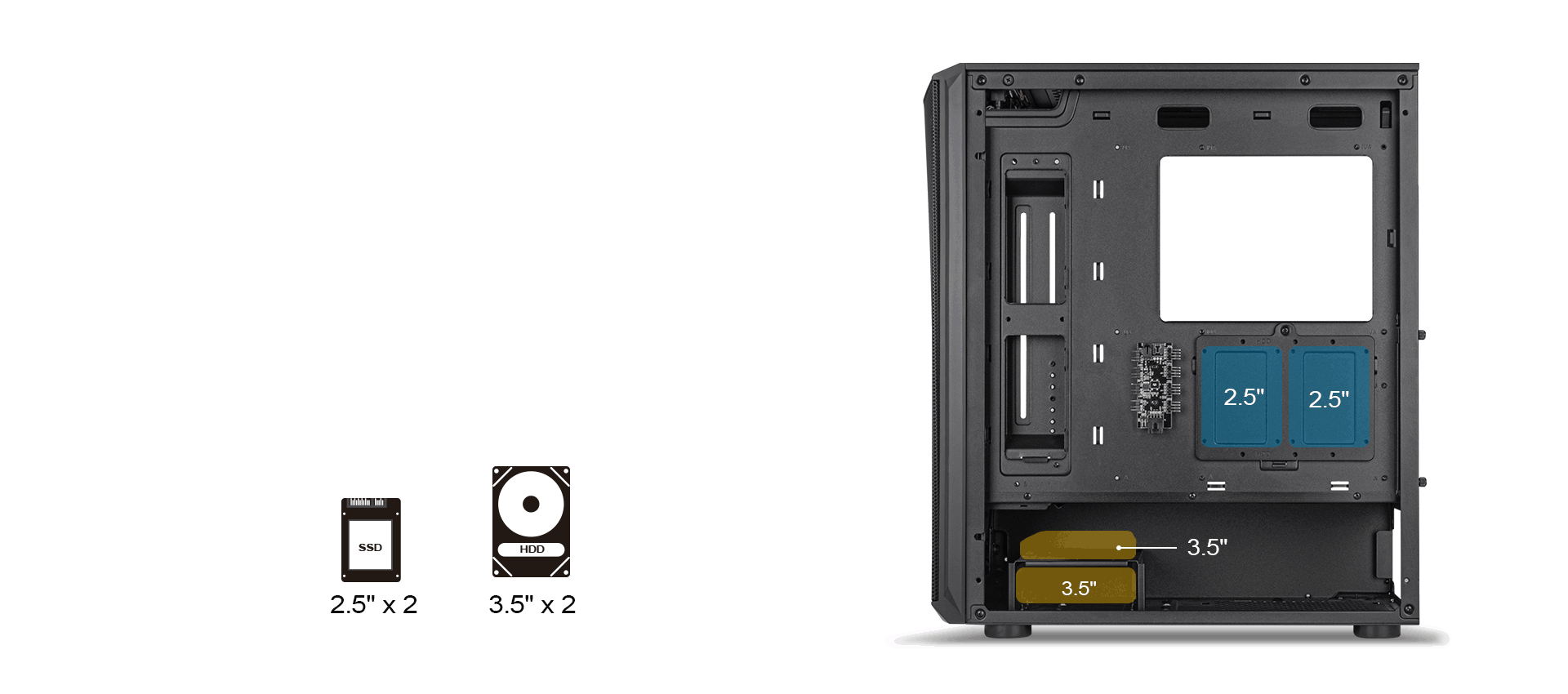

Tremendous storage expansion flexibility

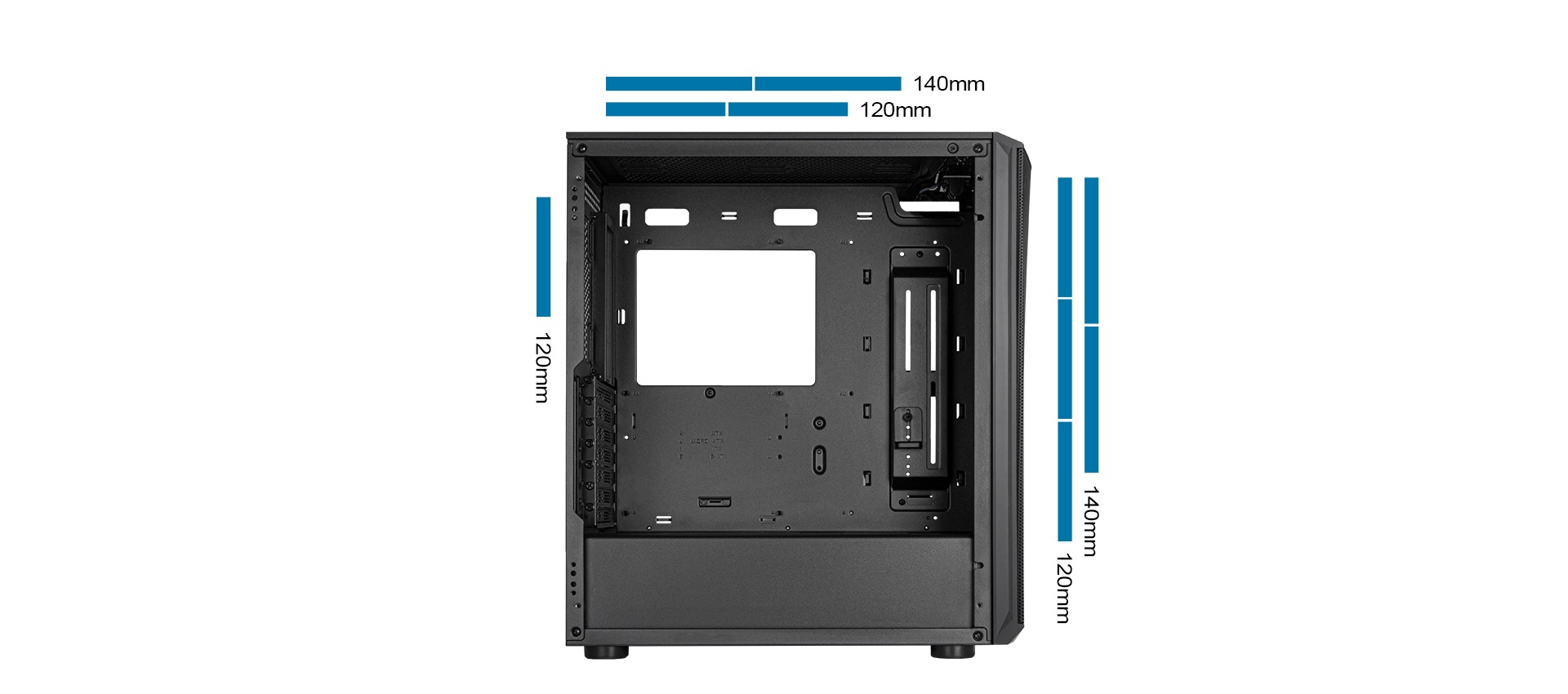

Excellent cooling capabilities

Model No. SST-FA512Z-BG (Black, tempered glass, ARGB fans, ARGB light strip)

Material Steel, plastic, tempered glass

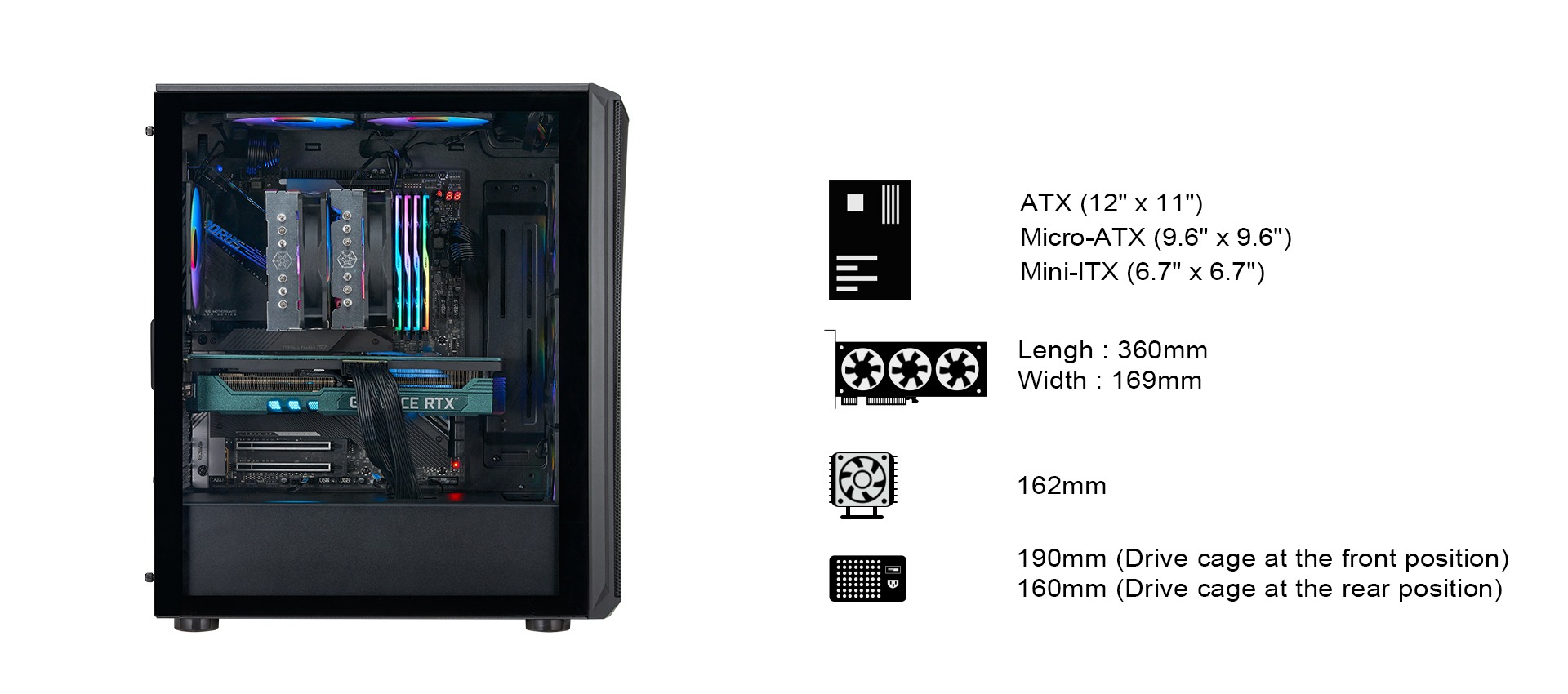

Motherboard ATX (12" x 11"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")

Drive bay Internal

3.5" x 2.5'' 1

3.5" x 1
2.5" x 2

Cooling system Front

· 120mm x 3 / 140mm x 2

Rear

· 120mm x 1
(120mm black fan x 1 included)

Top

· 120mm x 2 , 140mm x 2

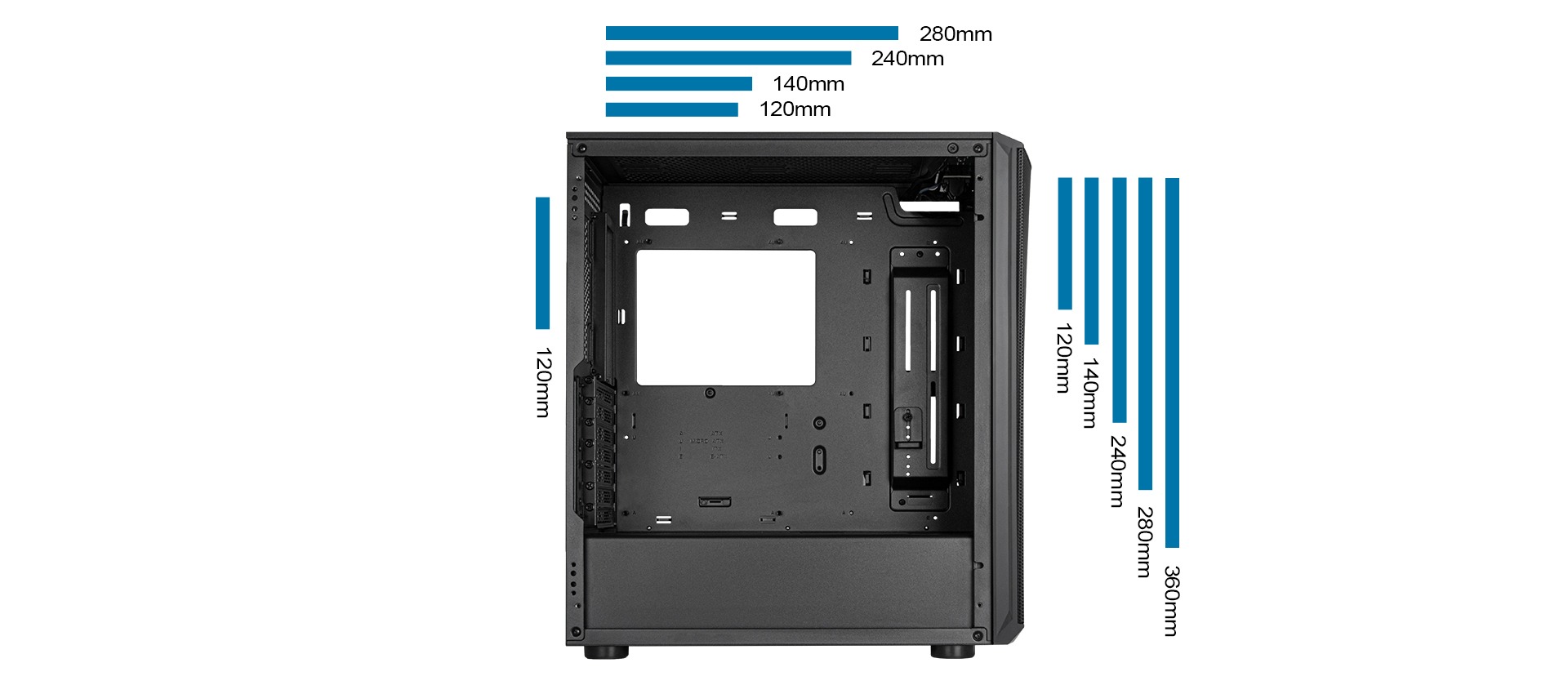

Radiator support Front

· 120mm / 140mm / 240mm / 280mm / 360mm*

Rear

· 120mm

Top

· 120mm / 140mm / 240mm / 280mm*

Limitation of CPU cooler 162mm

Expansion slot 7

Limitation of expansion card Length: 360mm
Width: 169mm

Power supply Standard PS2 (ATX)

Limitation of PSU 190mm (Drive cage installed at the front position)

160mm (Drive cage installed at the front position)

Front I/O port USB Type-C x 1

USB 3.0 x 2

Audio jack x 1

Microphone jack x 1

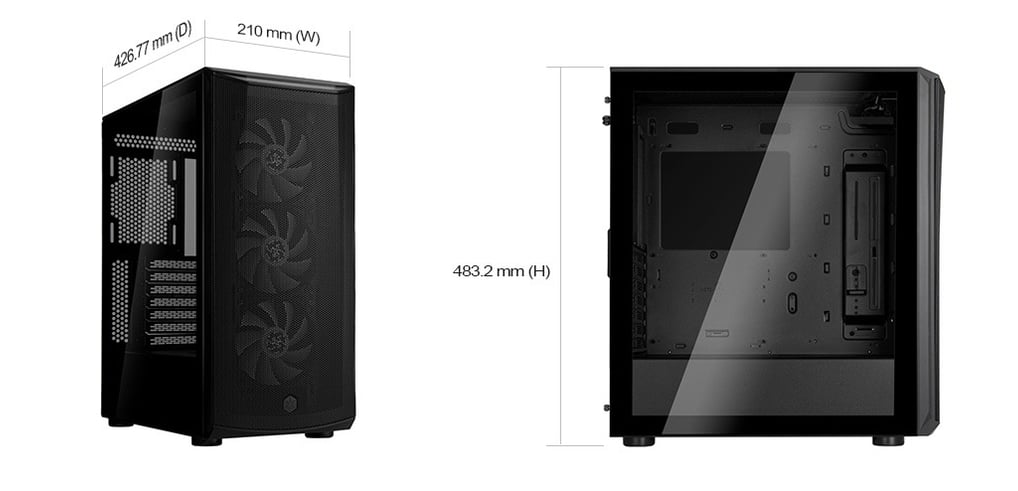

Dimension 210mm (W) x 483.2mm (H) x 426.77mm (D), 43.31 Liters
8.27" (W) x 19.02" (H) x 16.8" (D), 43.31 Liters

Net weight 6.83 kg

Maximum radiator thickness: 59mm
* Maximum height of motherboard components: 38mm, maximum radiator width: 120mm
